6. Triangular plate ABC is fixed along its base and apex C is given a horizontal displacement to position C'. For a = 13

Post by answerhappygod »

6 Triangular Plate Abc Is Fixed Along Its Base And Apex C Is Given A Horizontal Displacement To Position C For A 13 1
6 Triangular Plate Abc Is Fixed Along Its Base And Apex C Is Given A Horizontal Displacement To Position C For A 13 1 (25.96 KiB) Viewed 21 times

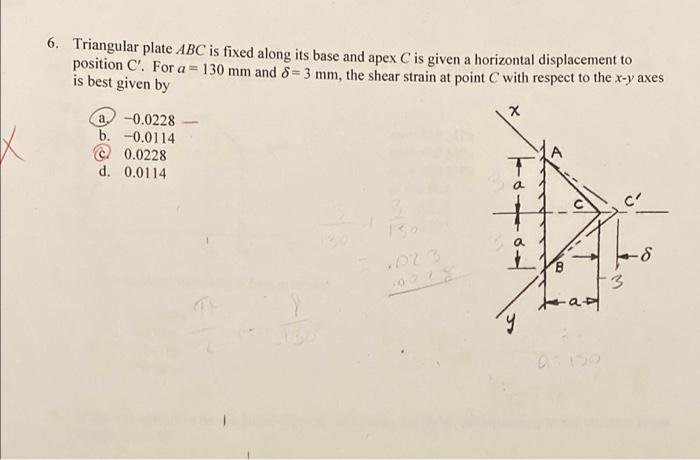

6. Triangular plate ABC is fixed along its base and apex C is given a horizontal displacement to position C'. For a = 130 mm and 8 = 3 mm, the shear strain at point with respect to the x-y axes is best given by X a -0.0228 b. -0.0114 © 0.0228 d. 0.0114 + -- 8 B .3 -af 9
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
