Air enters the compressor of a simple gas turbine at p1 = 14 lbf/in2, T1 = 520°R. The isentropic efficiencies of the com

[answerhappygod]

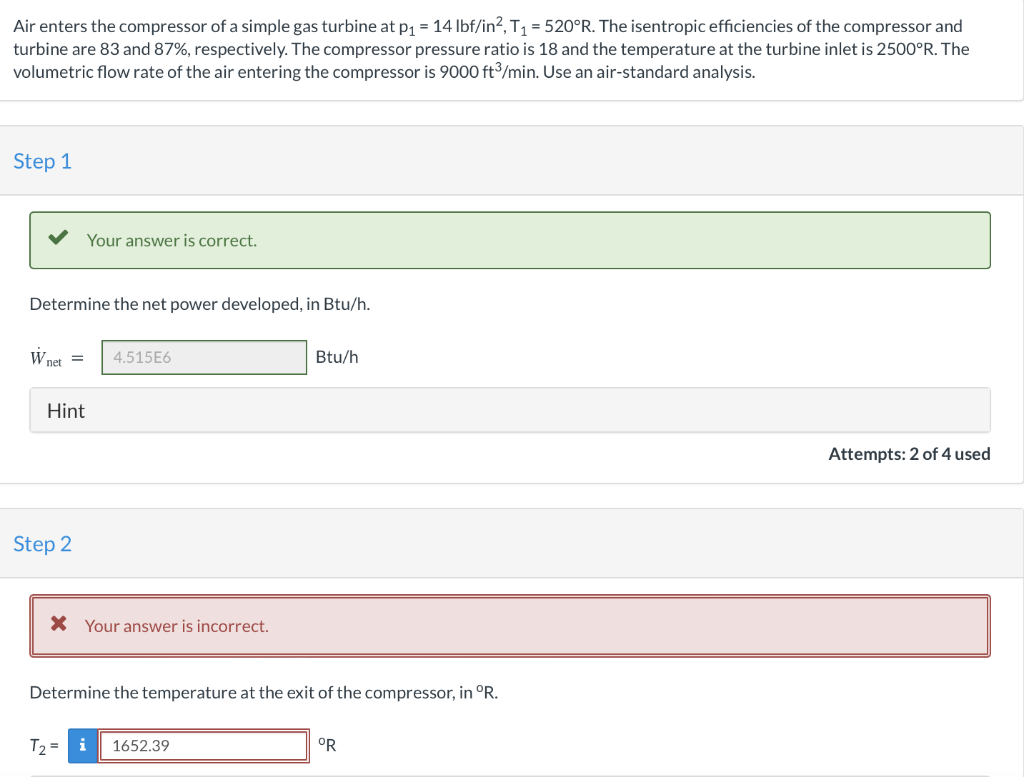

Air Enters The Compressor Of A Simple Gas Turbine At P1 14 Lbf In2 T1 520 R The Isentropic Efficiencies Of The Com 1 (78.15 KiB) Viewed 34 times

Air enters the compressor of a simple gas turbine at p1 = 14 lbf/in2, T1 = 520°R. The isentropic efficiencies of the compressor and turbine are 83 and 87%, respectively. The compressor pressure ratio is 18 and the temperature at the turbine inlet is 2500°r. The volumetric flow rate of the air entering the compressor is 9000 ft3/min. Use an air-standard analysis. Step 1 Your answer is correct. Determine the net power developed, in Btu/h. W net = 4.51556 Btu/h Hint Attempts: 2 of 4 used Step 2 X Your answer is incorrect. Determine the temperature at the exit of the compressor, in R. T2 = i 1652.39 'R
