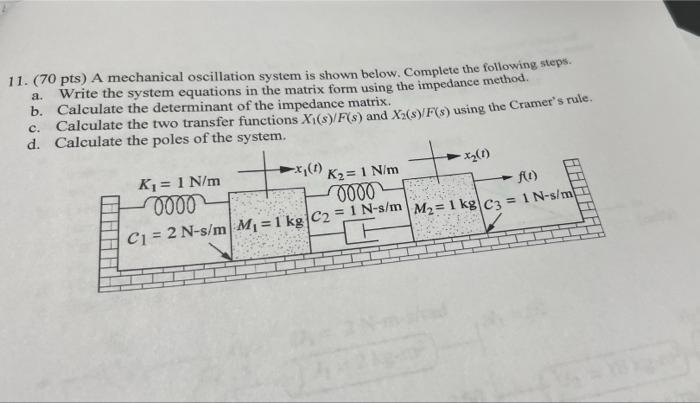

11. (70 pts) A mechanical oscillation system is shown below. Complete the following steps. a. Write the system equations

[answerhappygod]

11 70 Pts A Mechanical Oscillation System Is Shown Below Complete The Following Steps A Write The System Equations 1 (34.86 KiB) Viewed 17 times

11. (70 pts) A mechanical oscillation system is shown below. Complete the following steps. a. Write the system equations in the matrix form using the impedance method. b. Calculate the determinant of the impedance matrix. Calculate the two transfer functions Xi(*)/F(s) and Xx(s)/F(8) using the Cramer's rule. d. Calculate the poles of the system. c. **2(1) + Ki = 1 N/m K2= 1 N/m 00002 0000 ft) C1 = 2 N-s/m M = 1 kg C2 = 1 N-s/m M2 = 1 kg|c3 = 1 N-s/m
