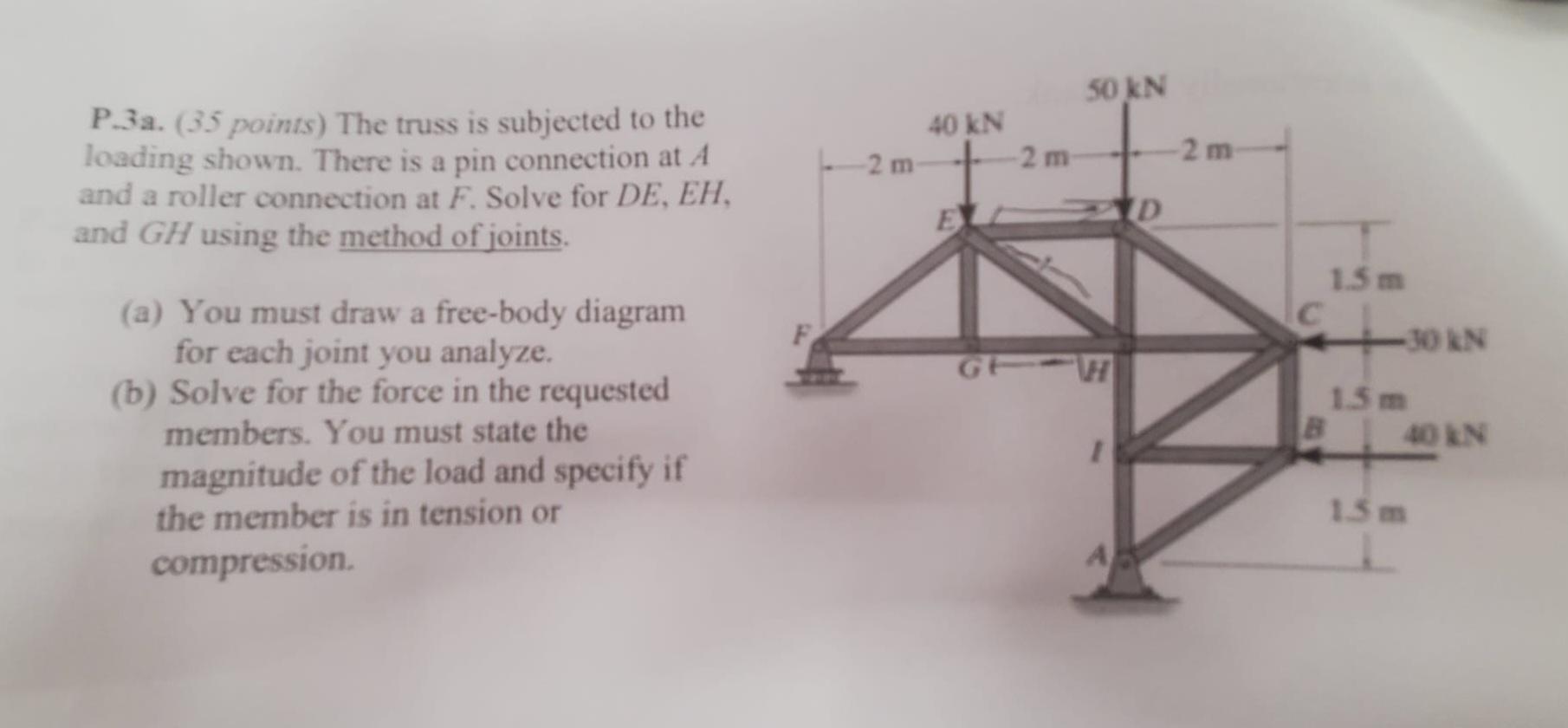

50 KN 40 KN 2 m 2 m 2 m P.3a. (35 points) The truss is subjected to the loading shown. There is a pin connection at A and a roller connection at F. Solve for DE, EH, and GH using the method of joints. E D 1.5 m -30 KN (a) You must draw a free-body diagram for each joint you analyze. (b) Solve for the force in the requested members. You must state the magnitude of the load and specify if the member is in tension or compression 1.5 m O EN 1 1.5 m А.
