1. Write CNC code manually for the part (with mm units). The
part has a uniform depth of 15 mm throughout.
a. With cutter compensation.
b. Without cutter compensation.

1 Write Cnc Code Manually For The Part With Mm Units The Part Has A Uniform Depth Of 15 Mm Throughout A With 1 (146.03 KiB) Viewed 19 times

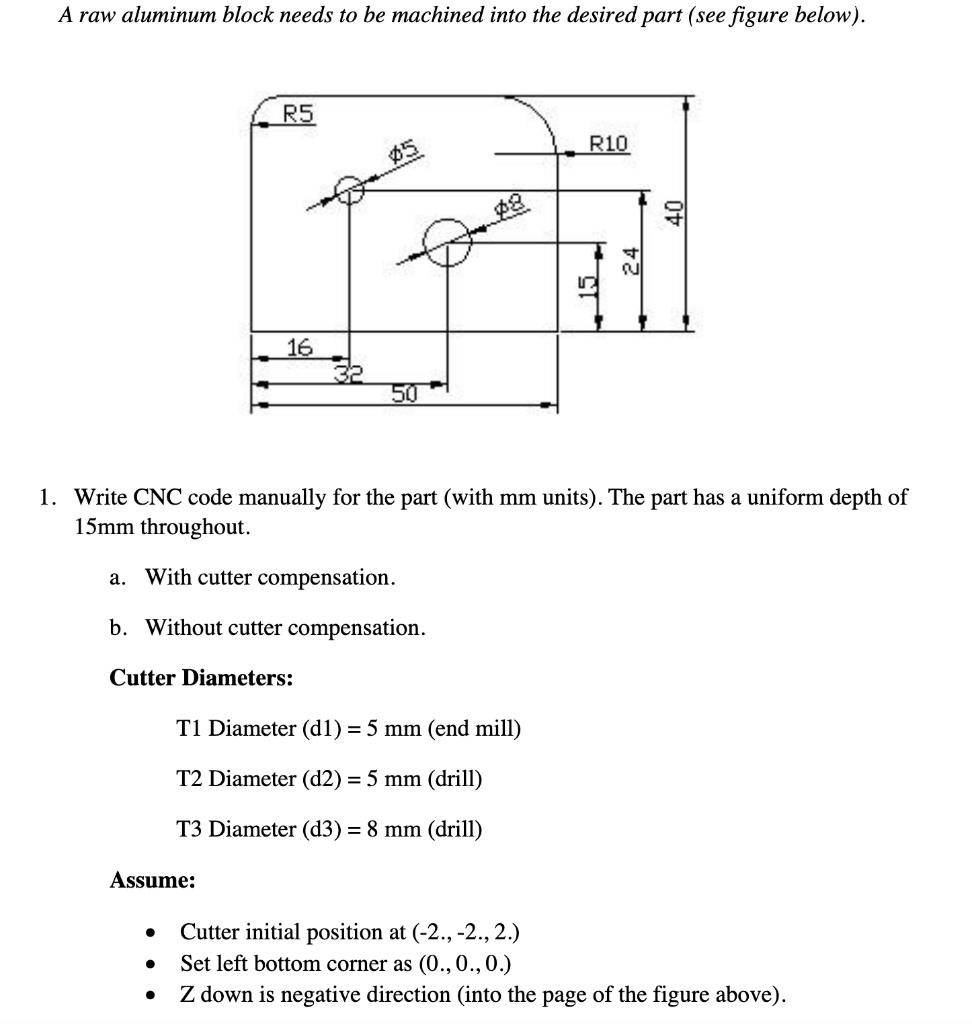

A raw aluminum block needs to be machined into the desired part (see figure below). R5 R10 40 24 15 16 50 1. Write CNC code manually for the part (with mm units). The part has a uniform depth of 15mm throughout. a. With cutter compensation. b. Without cutter compensation. Cutter Diameters: T1 Diameter (dl) = 5 mm (end mill) T2 Diameter (d2) = 5 mm (drill) T3 Diameter (d3) = 8 mm (drill) Assume: . Cutter initial position at (-2., -2., 2.) Set left bottom corner as (0., 0., 0.) Z down is negative direction into the page of the figure above). .
