1 = B. (10 pts) Link 3 can be approximated as a cylinder with a length of 3.5 in, radius of 0.2 in and mass of 2.4 kg, a

[answerhappygod]

1 B 10 Pts Link 3 Can Be Approximated As A Cylinder With A Length Of 3 5 In Radius Of 0 2 In And Mass Of 2 4 Kg A 1 (131.66 KiB) Viewed 24 times

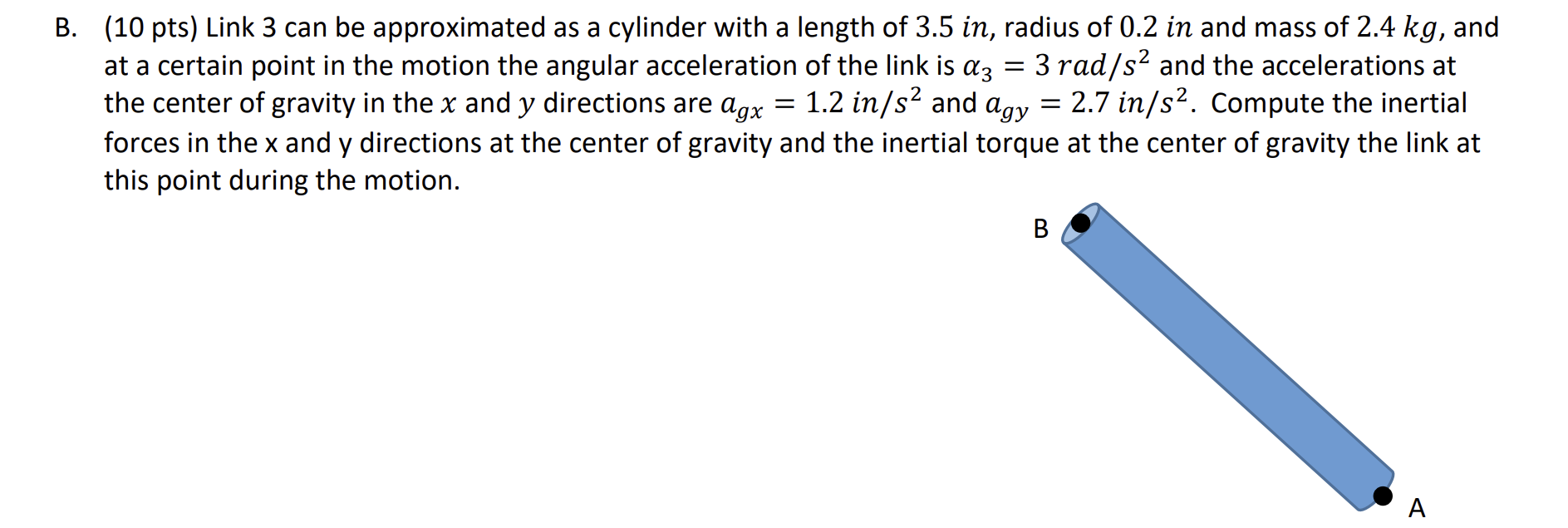

1 = B. (10 pts) Link 3 can be approximated as a cylinder with a length of 3.5 in, radius of 0.2 in and mass of 2.4 kg, and at a certain point in the motion the angular acceleration of the link is az 3 rad/s2 and the accelerations at the center of gravity in the x and y directions are agx 1.2 in/s2 and agy = 2.7 in/s2. Compute the inertial forces in the x and y directions at the center of gravity and the inertial torque at the center of gravity the link at this point during the motion. = B A
