3. Consider the transfer function below. 50 L(S) = 93 + 4.2 + 6s + 4 = (a) How many unstable poles does the open-loop sy

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

3. Consider the transfer function below. 50 L(S) = 93 + 4.2 + 6s + 4 = (a) How many unstable poles does the open-loop sy

Post by answerhappygod »

3 Consider The Transfer Function Below 50 L S 93 4 2 6s 4 A How Many Unstable Poles Does The Open Loop Sy 1

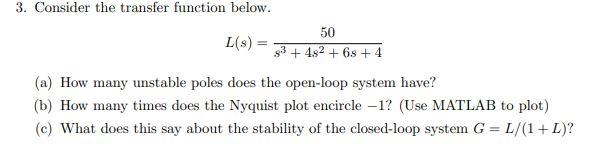

3 Consider The Transfer Function Below 50 L S 93 4 2 6s 4 A How Many Unstable Poles Does The Open Loop Sy 1 (14.66 KiB) Viewed 22 times
3. Consider the transfer function below. 50 L(S) = 93 + 4.2 + 6s + 4 = (a) How many unstable poles does the open-loop system have? (b) How many times does the Nyquist plot encircle-1? (Use MATLAB to plot) (c) What does this say about the stability of the closed-loop system G = L/(1+L)?
