5. From the given frequency response curve, answer all the following questions with your explanation: Bode Diagram 20 0

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

5. From the given frequency response curve, answer all the following questions with your explanation: Bode Diagram 20 0

Post by answerhappygod »

5 From The Given Frequency Response Curve Answer All The Following Questions With Your Explanation Bode Diagram 20 0 1
5 From The Given Frequency Response Curve Answer All The Following Questions With Your Explanation Bode Diagram 20 0 1 (36.34 KiB) Viewed 38 times

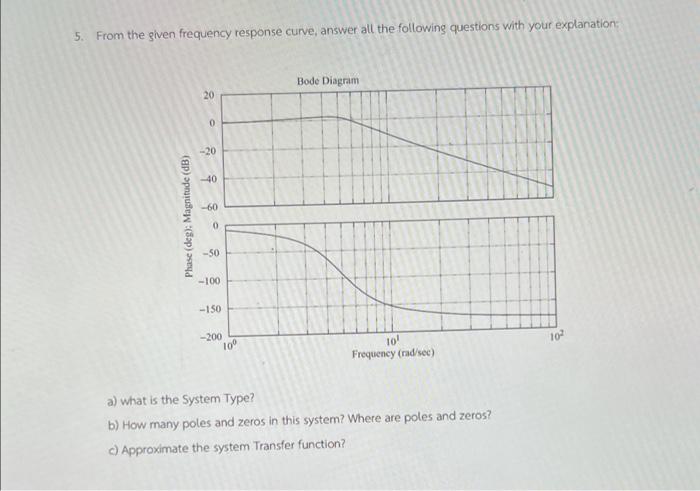

5. From the given frequency response curve, answer all the following questions with your explanation: Bode Diagram 20 0 -20 -40 -60 Phase (deg): Magnitude (dB) -50 -100 - 150 -200 102 100 10! Frequency (rad/sec) a) what is the System Type? b) How many poles and zeros in this system? Where are poles and zeros? Approximate the system Transfer function?
