Ain YA Y Lox in α X Water is discharged into the atmosphere through a bent nozzle of an angle (a) as shown in the figure

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Ain YA Y Lox in α X Water is discharged into the atmosphere through a bent nozzle of an angle (a) as shown in the figure

Post by answerhappygod »

1
1 (114.6 KiB) Viewed 21 times

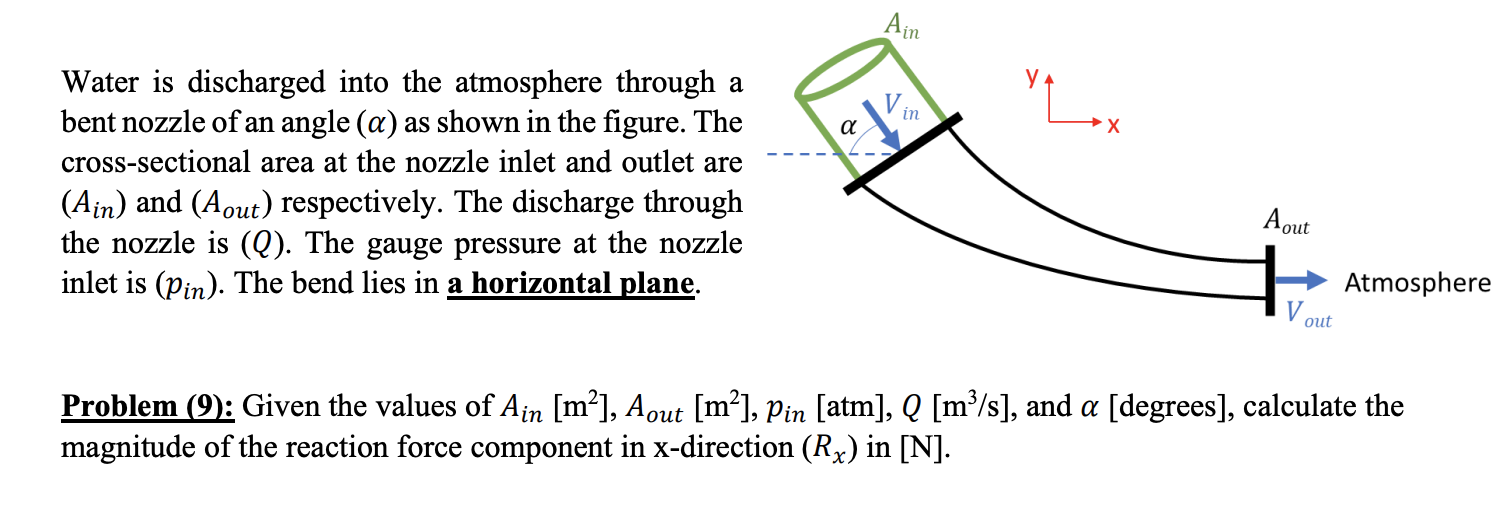

Ain YA Y Lox in α X Water is discharged into the atmosphere through a bent nozzle of an angle (a) as shown in the figure. The cross-sectional area at the nozzle inlet and outlet are (Ain) and (Aout) respectively. The discharge through the nozzle is (Q). The gauge pressure at the nozzle inlet is (pin). The bend lies in a horizontal plane. Aout Atmosphere out Problem (9): Given the values of Ain [mº], Aout [m²], Pin [atm], Q [m3/s], and a [degrees], calculate the magnitude of the reaction force component in x-direction (Rx) in [N].
