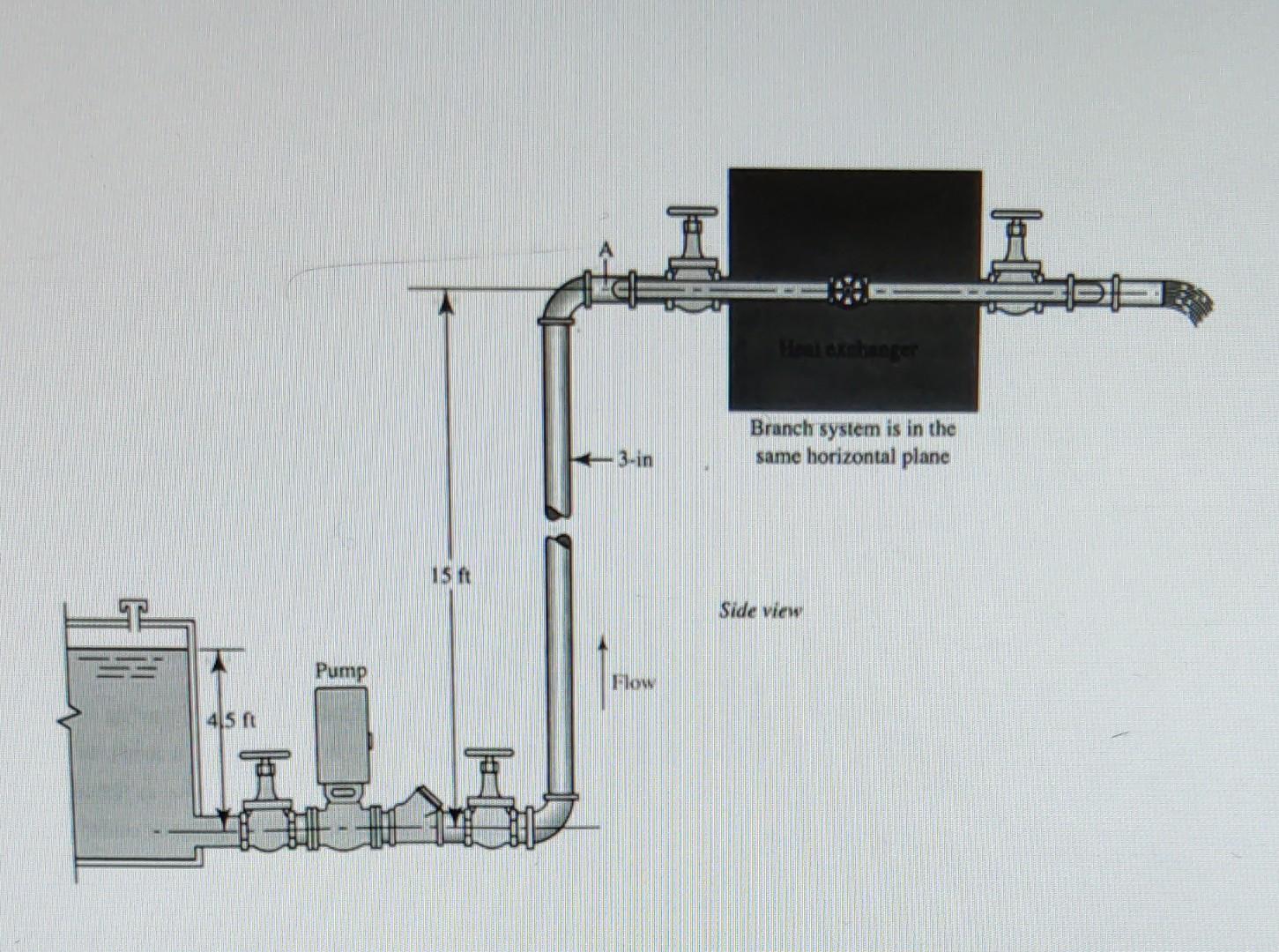

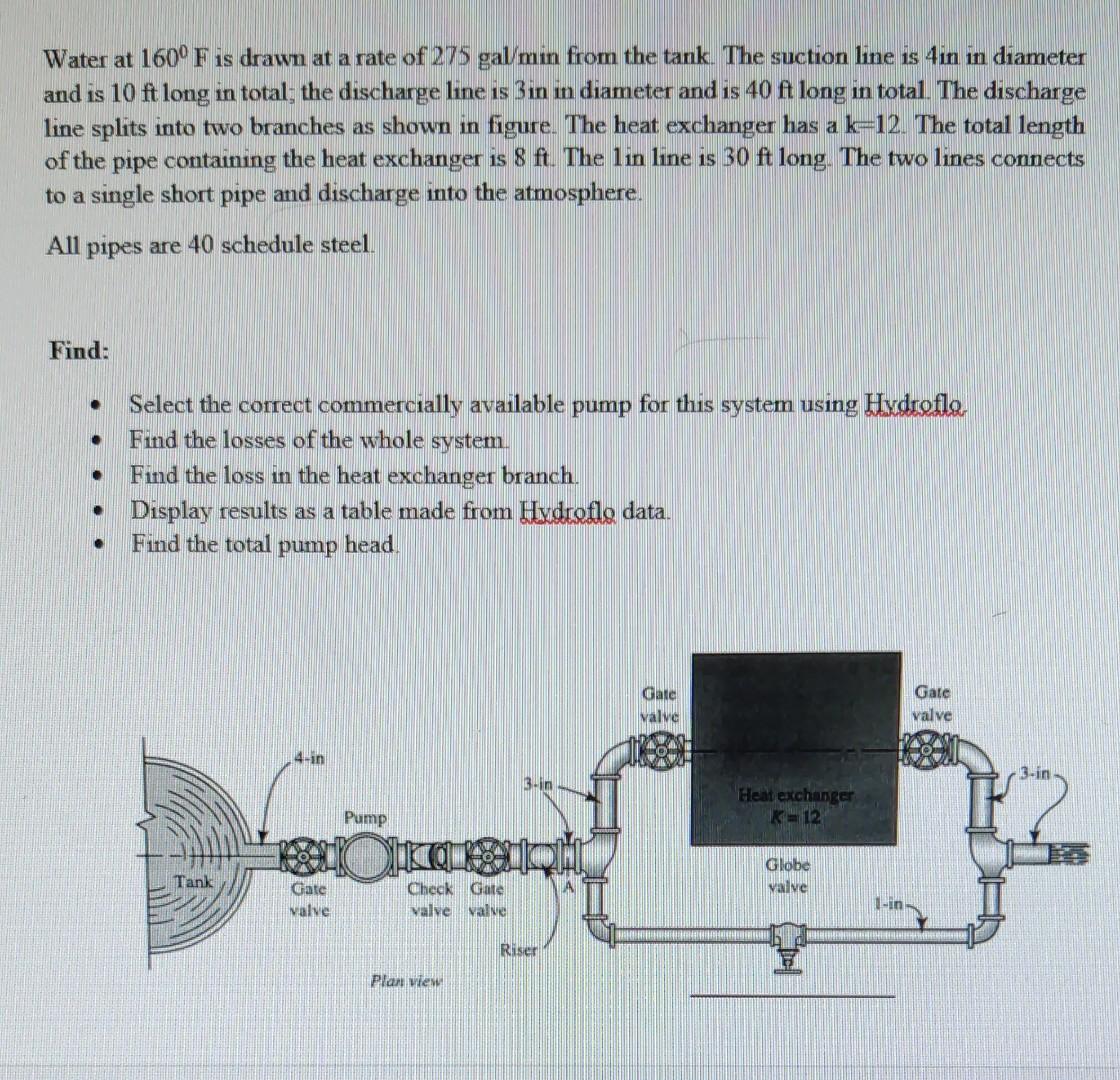

Water at 160° F is drawn at a rate of 275 gal/min from the tank. The suction line is 4in in diameter and is 10 ft long in total; the discharge line is 3in in diameter and is 40 ft long in total. The discharge line splits into two branches as shown in figure. The heat exchanger has a k-12. The total length of the pipe containing the heat exchanger is 8 ft. The lin line is 30 ft long. The two lines connects to a single short pipe and discharge into the atmosphere. All pipes are 40 schedule steel. Find: . . . Select the correct commercially available pump for this system using Hydrofle Find the losses of the whole system. Find the loss in the heat exchanger branch. Display results as a table made from Hydroflg data. Find the total pump head Gate valve Gate valve 14-in 3-in 3-In Heat exchanger K=12 Pump KO 3X1qh Tank Globe valve Gate valve Check Gate valve valve I-in Riser Plan view
