Problem (5): A tank of depth (h) containing two different liquids with specific gravities (Si) and (S2), respectively, i

[answerhappygod]

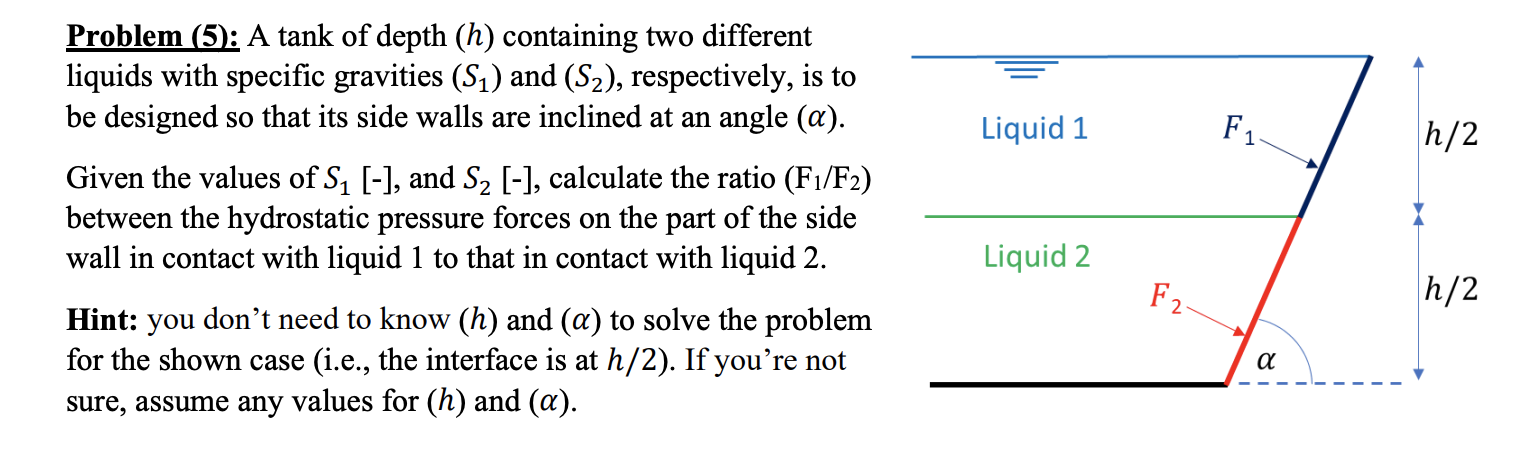

Problem 5 A Tank Of Depth H Containing Two Different Liquids With Specific Gravities Si And S2 Respectively I 1 (121.27 KiB) Viewed 17 times

Problem (5): A tank of depth (h) containing two different liquids with specific gravities (Si) and (S2), respectively, is to be designed so that its side walls are inclined at an angle (a). Liquid 1 F1 h/2 Given the values of S1 [-], and S2 (-), calculate the ratio (F1/F2) between the hydrostatic pressure forces on the part of the side wall in contact with liquid 1 to that in contact with liquid 2. Liquid 2. F2 h/2 Hint: you don't need to know (h) and (a) to solve the problem for the shown case (i.e., the interface is at h/2). If you're not sure, assume any values for (h) and (a). α
