Direction: Answer the following questions as directed. Write your answer in a sheet of yellow paper. Provide another she

[answerhappygod]

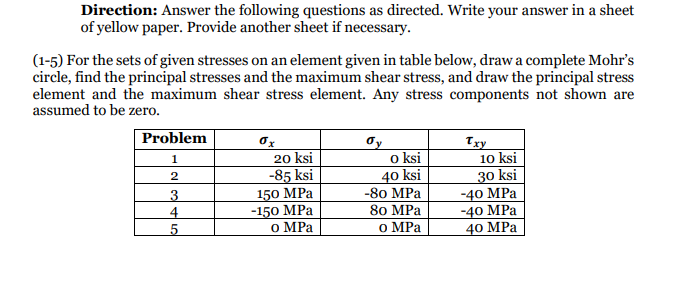

Direction Answer The Following Questions As Directed Write Your Answer In A Sheet Of Yellow Paper Provide Another She 1 (55.9 KiB) Viewed 21 times

Direction: Answer the following questions as directed. Write your answer in a sheet of yellow paper. Provide another sheet if necessary. (1-5) For the sets of given stresses on an element given in table below, draw a complete Mohr's circle, find the principal stresses and the maximum shear stress, and draw the principal stress element and the maximum shear stress element. Any stress components not shown are assumed to be zero. Problem Oy o ksi Try 1 2 σα 20 ksi -85 ksi 150 MPa -150 MPa o MPа 40 ksi 3 4 5 -80 MPa 80 MPa o MPа 10 ksi 30 ksi -40 MPa -40 MPa 40 MPa
