9-2 A cast-iron cylindrical pressure vessel having an inner diameter of d=100mm and a wall thickness of 8=5mm is subject

Post by answerhappygod »

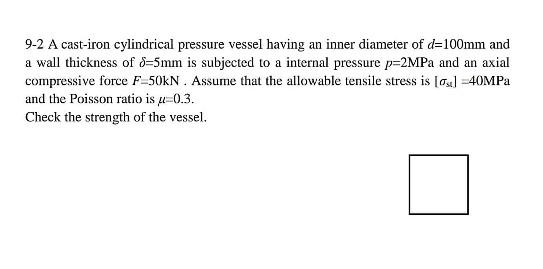

9 2 A Cast Iron Cylindrical Pressure Vessel Having An Inner Diameter Of D 100mm And A Wall Thickness Of 8 5mm Is Subject 1
9 2 A Cast Iron Cylindrical Pressure Vessel Having An Inner Diameter Of D 100mm And A Wall Thickness Of 8 5mm Is Subject 1 (17.3 KiB) Viewed 22 times
9-2 A cast-iron cylindrical pressure vessel having an inner diameter of d=100mm and a wall thickness of 8=5mm is subjected to a internal pressure p=2MPa and an axial compressive force F-50kN . Assume that the allowable tensile stress is [03] -40MPa and the Poisson ratio is p=0.3. Check the strength of the vessel.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
