Construct free body diagram for the mechatronics system shown, simulate in EMBED(VisSim), and graph the outputs. B F M M

Post by answerhappygod »

Construct Free Body Diagram For The Mechatronics System Shown Simulate In Embed Vissim And Graph The Outputs B F M M 1
Construct Free Body Diagram For The Mechatronics System Shown Simulate In Embed Vissim And Graph The Outputs B F M M 1 (373.54 KiB) Viewed 19 times

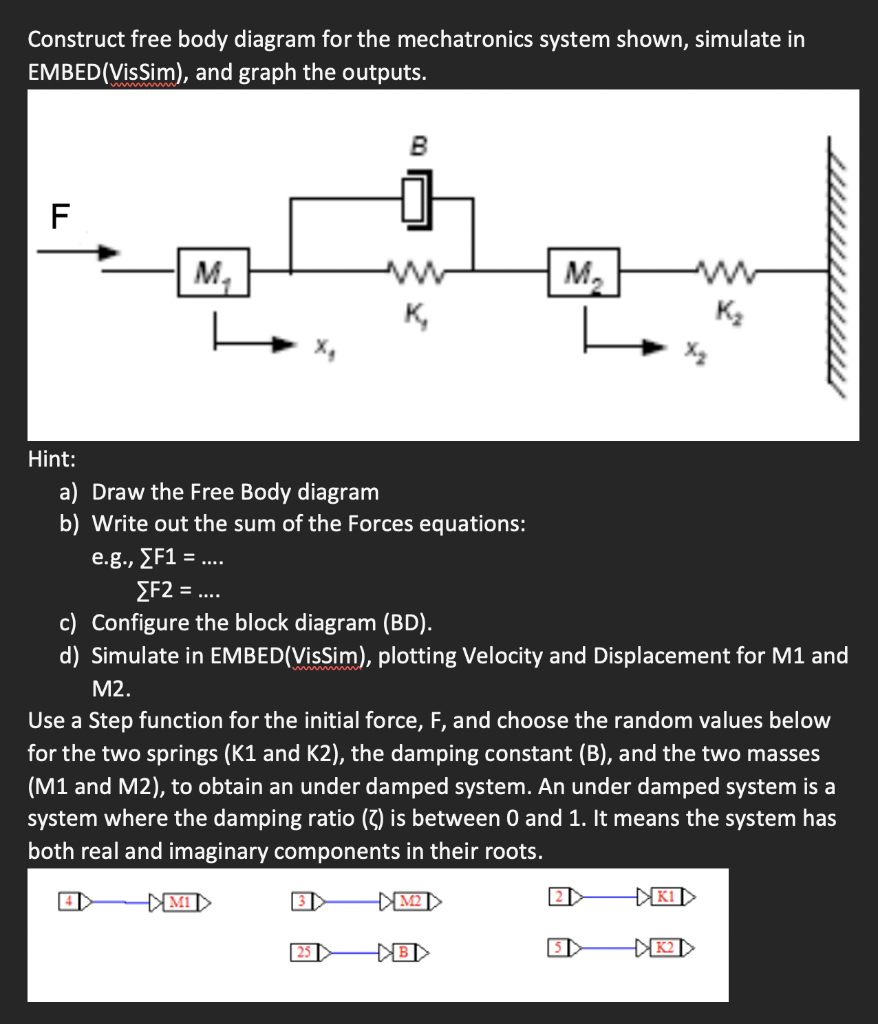

Construct free body diagram for the mechatronics system shown, simulate in EMBED(VisSim), and graph the outputs. B F M M. K Hint: a) Draw the Free Body diagram b) Write out the sum of the Forces equations: e.g., {F1 = .... ΣF2 = .... c) Configure the block diagram (BD). d) Simulate in EMBED(VisSim), plotting Velocity and Displacement for M1 and M2. Use a Step function for the initial force, F, and choose the random values below for the two springs (K1 and K2), the damping constant (B), and the two masses (M1 and M2), to obtain an under damped system. An under damped system is a system where the damping ratio (7) is between 0 and 1. It means the system has both real and imaginary components in their roots. M M2) K1 4 31 23 B 5 K2
