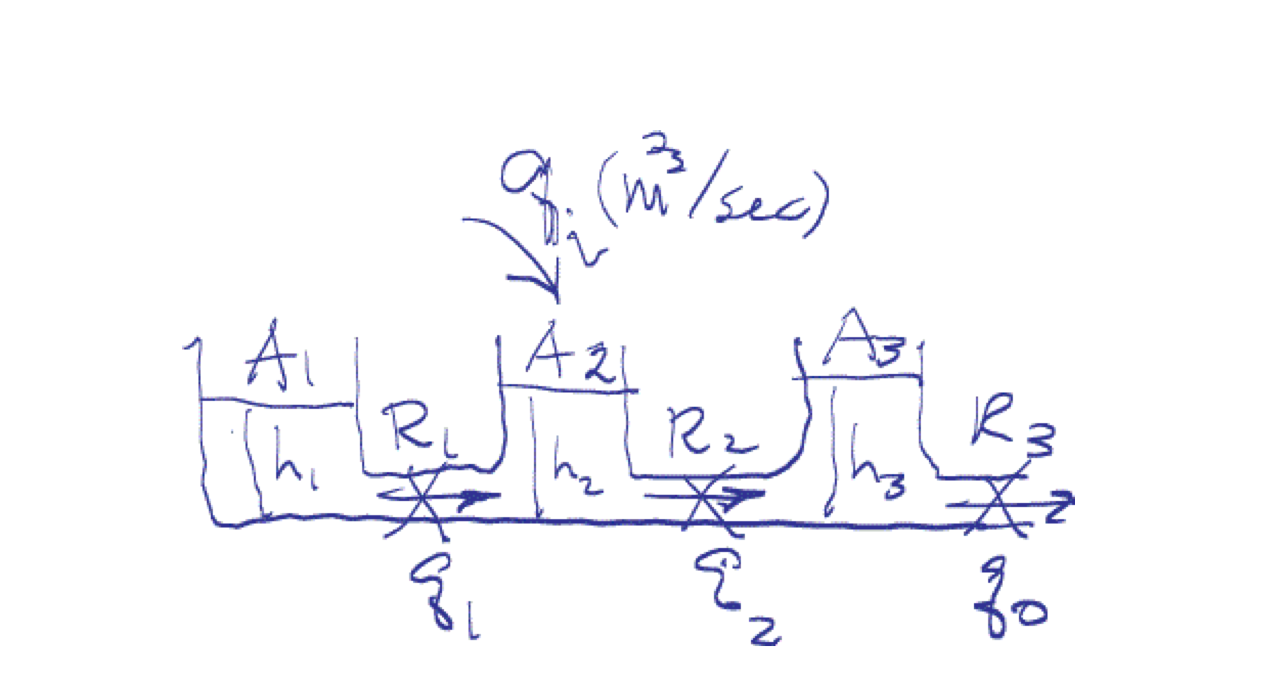

The triple bucket + valve structure depicted in figure needs to be modeled. Set up the governing equations of this dynamics and describe how to determine the TF between qi flow rate and h3 , the head in bucket # 3. That is, H3(s)/Qi(s). What is the DC gain for this TF? Since we do not have the precise TF expression, substitution of s=0 is not the answer. Instead, you need to provide a physics-based determination of the DC gain
