Two double acting cylinder are used to transfer parts from a magazine onto a chute. Reed switches are used to confirm th

[answerhappygod]

Two Double Acting Cylinder Are Used To Transfer Parts From A Magazine Onto A Chute Reed Switches Are Used To Confirm Th 1 (69.54 KiB) Viewed 21 times

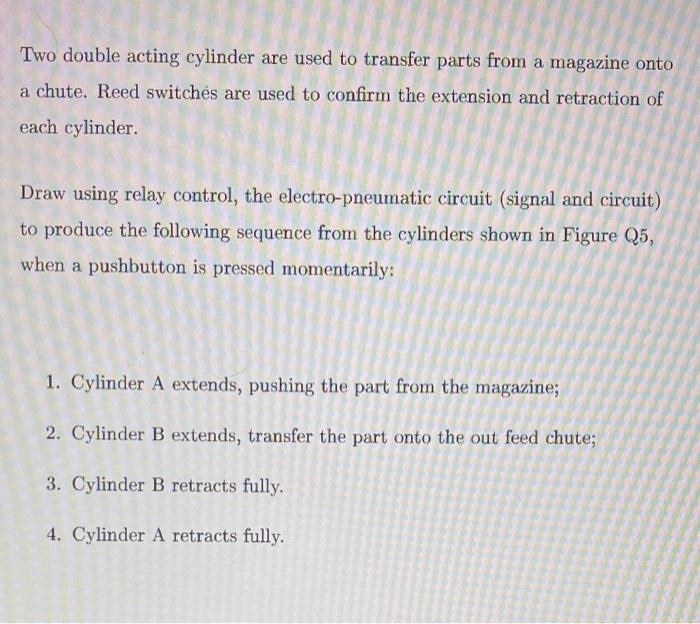

Two double acting cylinder are used to transfer parts from a magazine onto a chute. Reed switches are used to confirm the extension and retraction of each cylinder. Draw using relay control, the electro-pneumatic circuit (signal and circuit) to produce the following sequence from the cylinders shown in Figure Q5, when a pushbutton is pressed momentarily: 1. Cylinder A extends, pushing the part from the magazine; 2. Cylinder B extends, transfer the part onto the out feed chute; 3. Cylinder B retracts fully. 4. Cylinder A retracts fully.
