Fluid Mechanics
Fluid Mechanics

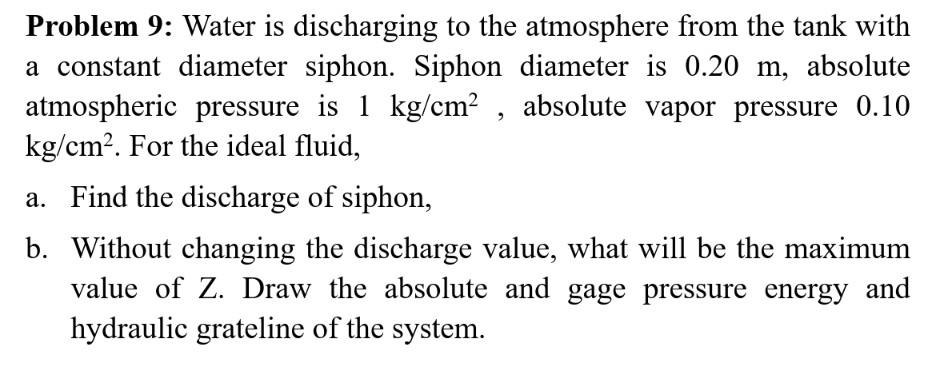

Problem 9: Water is discharging to the atmosphere from the tank with a constant diameter siphon. Siphon diameter is 0.20 m, absolute atmospheric pressure is 1 kg/cm² , absolute vapor pressure 0.10 kg/cm². For the ideal fluid, a. Find the discharge of siphon, b. Without changing the discharge value, what will be the maximum value of Z. Draw the absolute and gage pressure energy and hydraulic grateline of the system.
Problem 9: Water is discharging to the atmosphere from the tank with a constant diameter siphon. Siphon diameter is 0.20 m, absolute atmospheric pressure is 1 kg/cm² , absolute vapor pressure 0.10 kg/cm². For the ideal fluid, a. Find the discharge of siphon, b. Without changing the discharge value, what will be the maximum value of Z. Draw the absolute and gage pressure energy and hydraulic grateline of the system.
