= PROBLEM 2: For the given vertical gate AB, the width is b = 4m and water depths are for A and B h, = 2m, h2 = 6 m. Gat

Post by answerhappygod »

Problem 2 For The Given Vertical Gate Ab The Width Is B 4m And Water Depths Are For A And B H 2m H2 6 M Gat 1
Problem 2 For The Given Vertical Gate Ab The Width Is B 4m And Water Depths Are For A And B H 2m H2 6 M Gat 1 (36.43 KiB) Viewed 20 times
dynamics

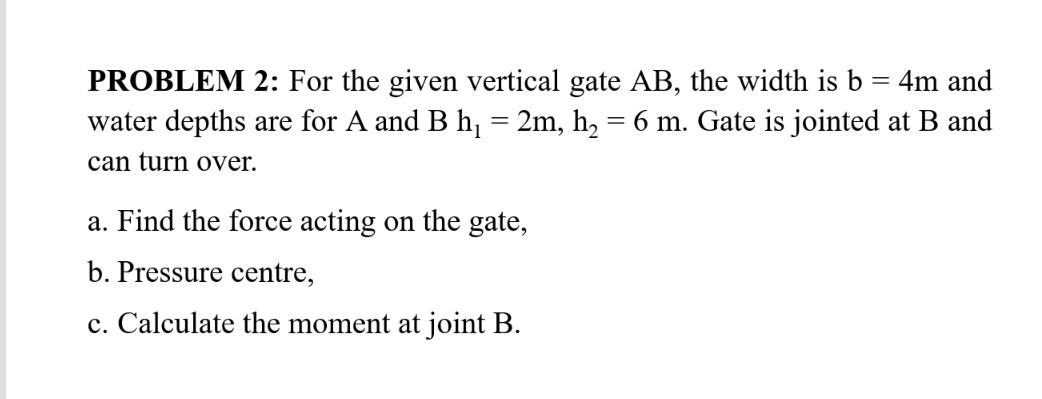

= PROBLEM 2: For the given vertical gate AB, the width is b = 4m and water depths are for A and B h, = 2m, h2 = 6 m. Gate is jointed at B and = = can turn over. a. Find the force acting on the gate, b. Pressure centre, c. Calculate the moment at joint B.
