Question-8. (15 points). A cylindrical metal specimen with a diameter of 16 mm and length of 88 mm is to be subjected to

[answerhappygod]

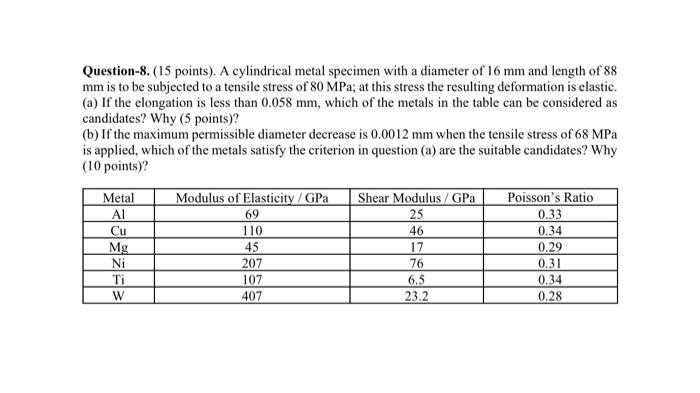

Question 8 15 Points A Cylindrical Metal Specimen With A Diameter Of 16 Mm And Length Of 88 Mm Is To Be Subjected To 1 (38.8 KiB) Viewed 23 times

Question-8. (15 points). A cylindrical metal specimen with a diameter of 16 mm and length of 88 mm is to be subjected to a tensile stress of 80 MPa; at this stress the resulting deformation is elastic. (a) If the elongation is less than 0.058 mm, which of the metals in the table can be considered as candidates? Why (5 points)? (b) If the maximum permissible diameter decrease is 0.0012 mm when the tensile stress of 68 MPa is applied, which of the metals satisfy the criterion in question (a) are the suitable candidates? Why (10 points) Metal Modulus of Elasticity / GPa Shear Modulus / GPa Poisson's Ratio AI 25 0.33 110 0.34 Mg 45 0.29 Ni 76 0.31 Ti 107 0.34 407 23.2 0.28 69 Cu 46 17 207 6,5 W
