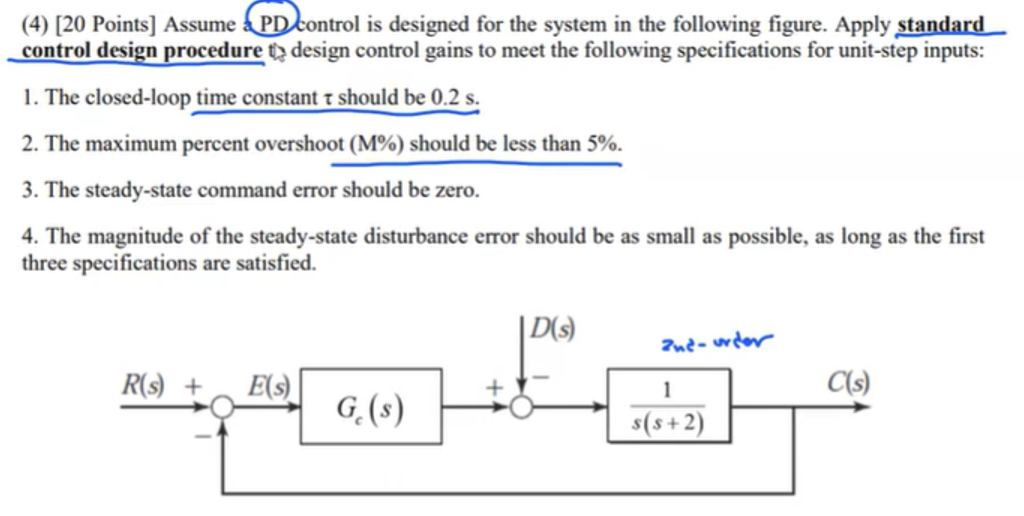

(4) [20 Points] Assume & PD control is designed for the system in the following figure. Apply standard control design procedure to design control gains to meet the following specifications for unit-step inputs: 1. The closed-loop time constant t should be 0.2 s. 2. The maximum percent overshoot (M%) should be less than 5%. 3. The steady-state command error should be zero. 4. The magnitude of the steady-state disturbance error should be as small as possible, as long as the first three specifications are satisfied. |D(S) 2nd-order R(s) + E(S) C(s) G (3) 1 s(s+2)
