For the beam and loading shown, use the double-integration
method to determine (a) the equation of the elastic curve for the
cantilever beam, (b) the deflection at B, (c) the
deflection at the free end, and (d) the slope at the free end.
Assume that EI is constant for the beam. Let w
= 9 kN/m, L = 6.0 m, E = 175 GPa, and
I = 105 x 106 mm4

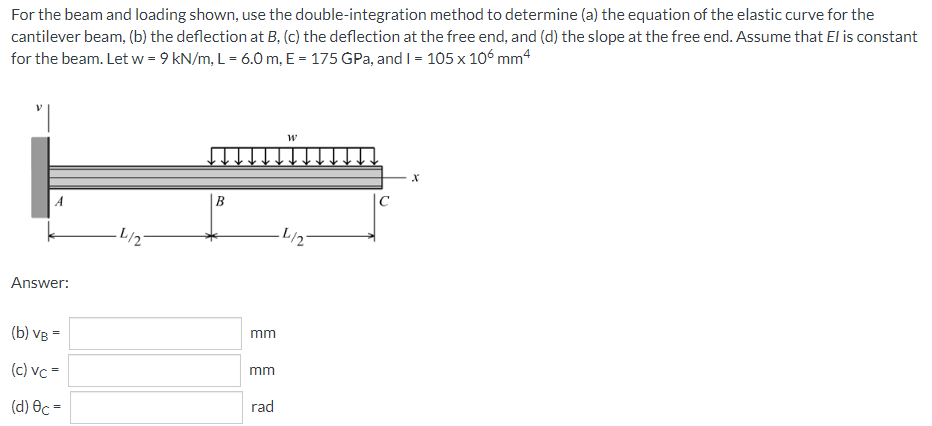

For The Beam And Loading Shown Use The Double Integration Method To Determine A The Equation Of The Elastic Curve For 1 (22.45 KiB) Viewed 28 times
For the beam and loading shown, use the double-integration method to determine (a) the equation of the elastic curve for the cantilever beam, (b) the deflection at B. (c) the deflection at the free end, and (d) the slope at the free end. Assume that El is constant for the beam. Let w = 9 kN/m, L = 6.0m, E = 175 GPa, and I - 105 x 106mm4 w . A B с 112 1/2 Answer: (b) VB = mm (c) VC- mm (d) @c= rad
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
