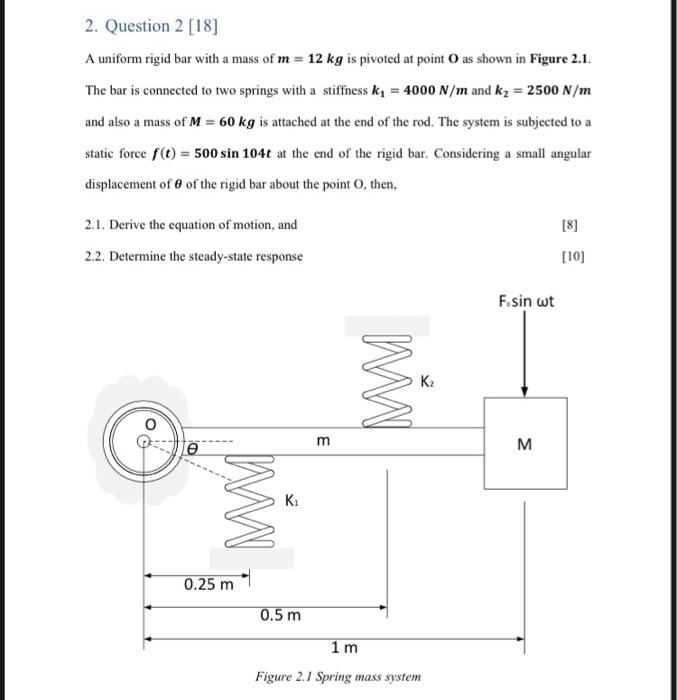

2. Question 2 [18] A uniform rigid bar with a mass of m= 12 kg is pivoted at point O as shown in Figure 2.1. The bar is

[answerhappygod]

2 Question 2 18 A Uniform Rigid Bar With A Mass Of M 12 Kg Is Pivoted At Point O As Shown In Figure 2 1 The Bar Is 1 (39.96 KiB) Viewed 41 times

2. Question 2 [18] A uniform rigid bar with a mass of m= 12 kg is pivoted at point O as shown in Figure 2.1. The bar is connected to two springs with a stiffness k, = 4000 N/m and k2 = 2500 N/m and also a mass of M = 60 kg is attached at the end of the rod. The system is subjected to a static force f(t) = 500 sin 104t at the end of the rigid bar. Considering a small angular displacement of of the rigid bar about the point O, then. 2.1. Derive the equation of motion, and 2.2. Determine the steady-state response [10] Fosin wt K2 M m E 3 Ki M 0.25 m 1 0.5 m 1 m Figure 2.1 Spring mass system
