X Your answer is incorrect. As shown in the figure below, air enters the diffuser of a jet engine operating at steady st

[answerhappygod]

X Your Answer Is Incorrect As Shown In The Figure Below Air Enters The Diffuser Of A Jet Engine Operating At Steady St 1 (64.38 KiB) Viewed 17 times

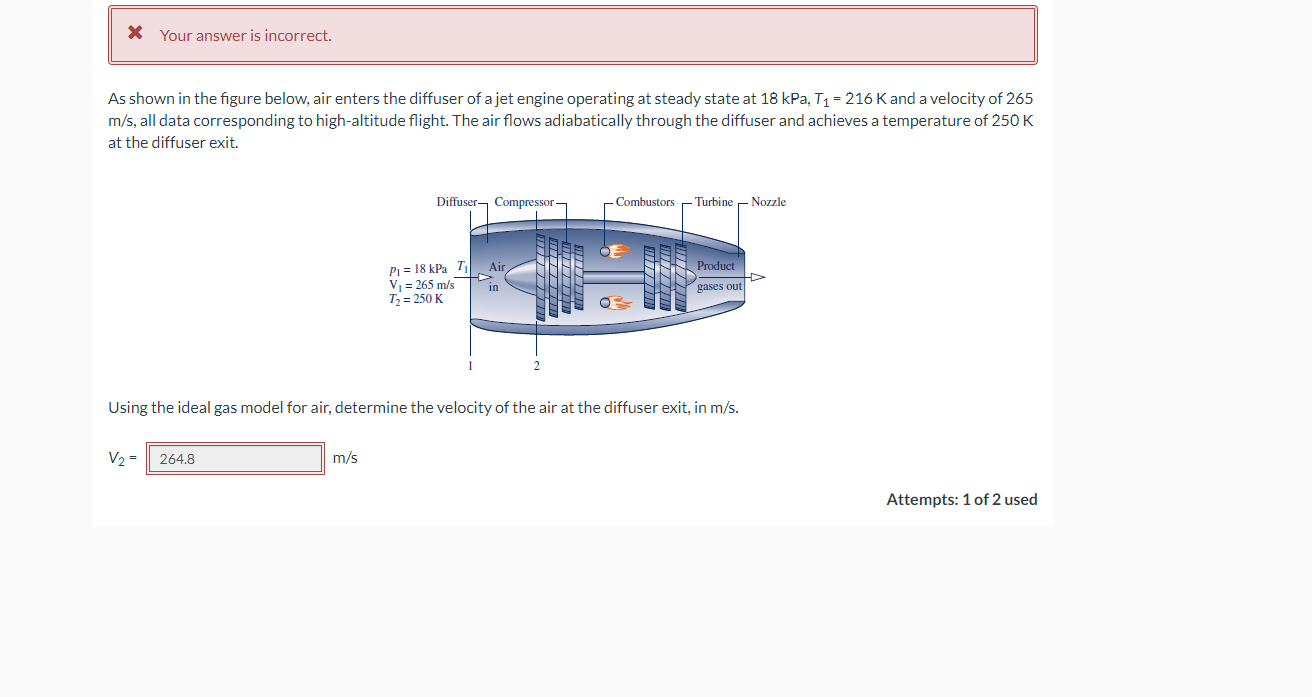

X Your answer is incorrect. As shown in the figure below, air enters the diffuser of a jet engine operating at steady state at 18 kPa, T1 = 216 K and a velocity of 265 m/s, all data corresponding to high-altitude flight. The air flows adiabatically through the diffuser and achieves a temperature of 250 K at the diffuser exit. Diffuser Compressor Combustors Turbine Nozzle Ain Product Pi = 18 kPa T Vi = 265 m/s T, = 250K in gases out Using the ideal gas model for air, determine the velocity of the air at the diffuser exit, in m/s. V2= 264.8 m/s Attempts: 1 of 2 used
