7. For the axial bar element with three nodes distributed as shown in Figure 5. Find the shape function related to node

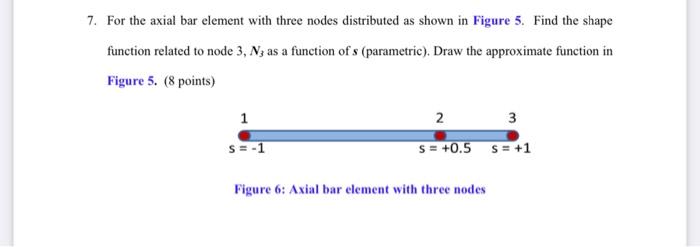

7. For the axial bar element with three nodes distributed as shown in Figure 5. Find the shape function related to node 3, N; as a function of s (parametric). Draw the approximate function in Figure 5. (8 points) 1 2 3 S = -1 S = +0.5 S = +1 Figure 6: Axial bar element with three nodes
