5. 1) If block A has a mass of 1.2 kg, determine the largest mass of block B without causing motion of the system. The c

[answerhappygod]

5 1 If Block A Has A Mass Of 1 2 Kg Determine The Largest Mass Of Block B Without Causing Motion Of The System The C 1 (36.84 KiB) Viewed 22 times

5 1 If Block A Has A Mass Of 1 2 Kg Determine The Largest Mass Of Block B Without Causing Motion Of The System The C 2 (24.09 KiB) Viewed 22 times

5 1 If Block A Has A Mass Of 1 2 Kg Determine The Largest Mass Of Block B Without Causing Motion Of The System The C 3 (38.04 KiB) Viewed 22 times

5 1 If Block A Has A Mass Of 1 2 Kg Determine The Largest Mass Of Block B Without Causing Motion Of The System The C 4 (25.46 KiB) Viewed 22 times

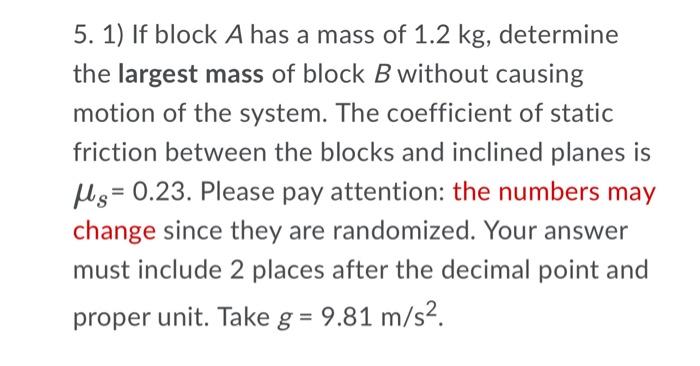

5. 1) If block A has a mass of 1.2 kg, determine the largest mass of block B without causing motion of the system. The coefficient of static friction between the blocks and inclined planes is Ms = 0.23. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point and proper unit. Take g = 9.81 m/s2.

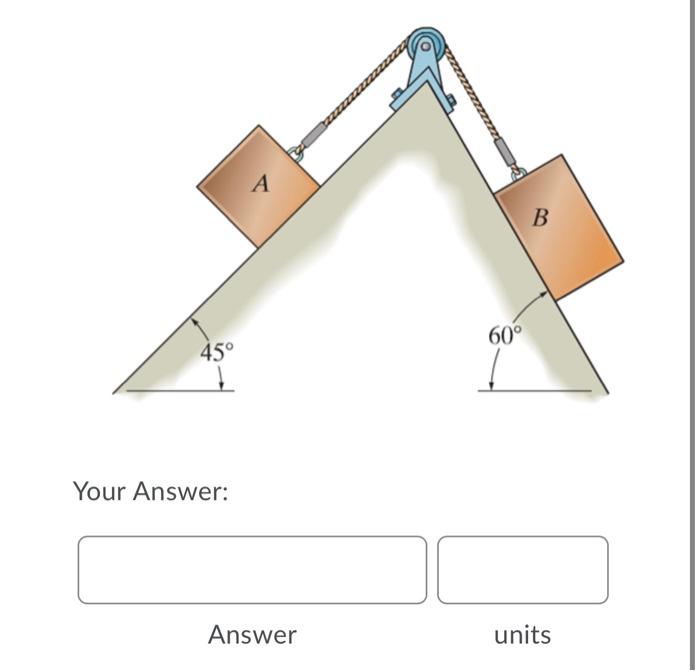

4 B 60° 45° Your Answer: : Answer units

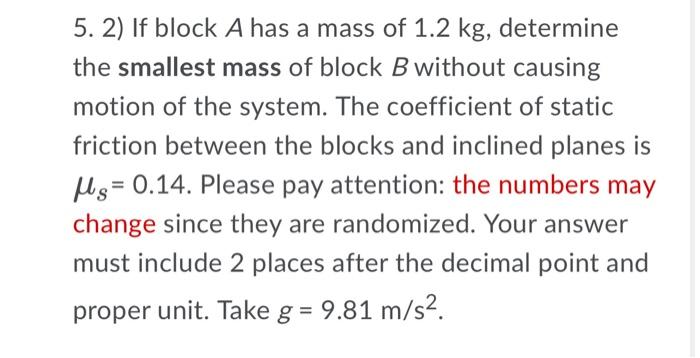

5. 2) If block A has a mass of 1.2 kg, determine the smallest mass of block B without causing motion of the system. The coefficient of static friction between the blocks and inclined planes is Ms= = 0.14. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point and proper unit. Take g = 9.81 m/s2.
B 60° 45° Your Answer: : Answer units
