2. 2) The bent rod is supported at points A, B and C by smooth journal bearings, and is subjected to force F. If dimensions a = 2.5 m, b = 1.3 m, c = 0.7 m, and d = 3.0 m, and the force Fis {-21 + 9j - 3k} kN, determine the magnitude of the moment in kNm) caused by force Fabout point A. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. B o F Your Answer: Answer

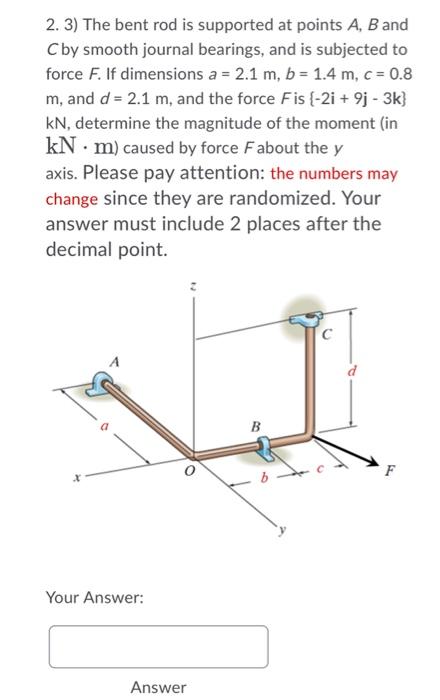

2. 3) The bent rod is supported at points A, B and C by smooth journal bearings, and is subjected to force F. If dimensions a = 2.1 m, b = 1.4 m, c = 0.8 m, and d = 2.1 m, and the force Fis (-2i+ 91 - 3k} KN, determine the magnitude of the moment in kNm) caused by force Fabout the y axis. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. с B F Your Answer: Answer

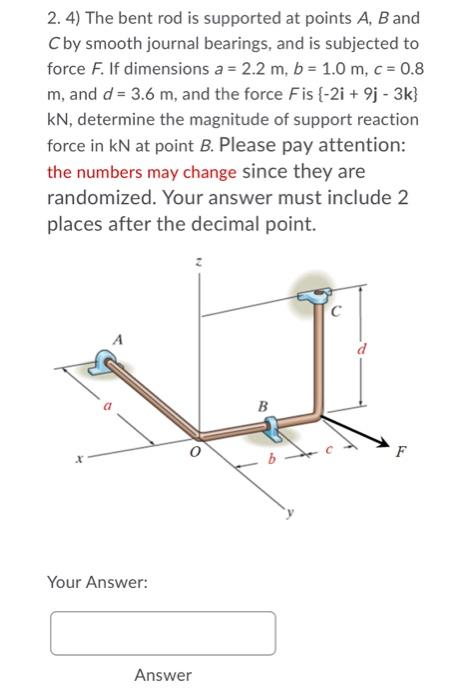

2. 4) The bent rod is supported at points A, B and Cby smooth journal bearings, and is subjected to force F. If dimensions a = 2.2 m, b = 1.0 m, c = 0.8 m, and d = 3.6 m, and the force Fis {-2i + 9j - 3k} KN, determine the magnitude of support reaction force in kN at point B. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. с d B F Your Answer: Answer
