1. The shear force diagram of a loaded beam is shown in Figure Ql. Determine the loading and nature of the beam and dete

[answerhappygod]

1 The Shear Force Diagram Of A Loaded Beam Is Shown In Figure Ql Determine The Loading And Nature Of The Beam And Dete 1 (32.85 KiB) Viewed 25 times

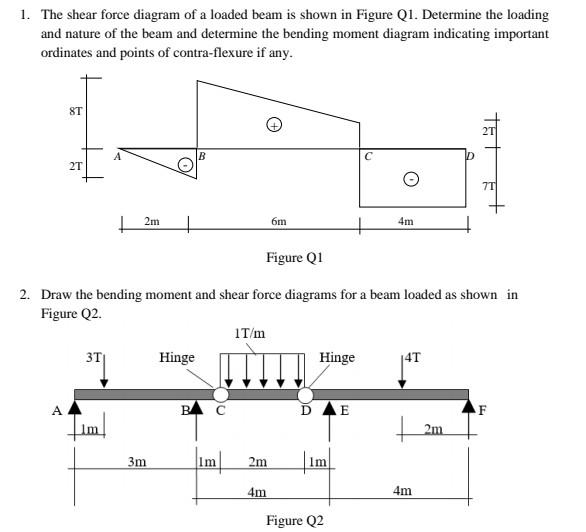

1. The shear force diagram of a loaded beam is shown in Figure Ql. Determine the loading and nature of the beam and determine the bending moment diagram indicating important ordinates and points of contra-flexure if any. ST TET A B 2T 71 + + 12m бm 4m Figure Q1 2. Draw the bending moment and shear force diagrams for a beam loaded as shown in Figure Q2. 1T/m 3T Hinge Hinge 4T A BAC DAE Tim 2m 3m Im! 2m m 4m 4m Figure Q2
