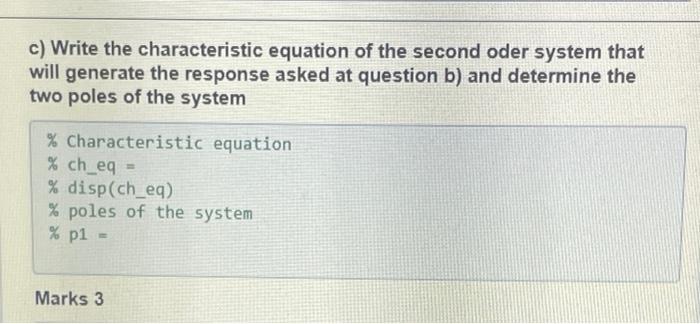

c) Write the characteristic equation of the second oder system that will generate the response asked at question b) and determine the two poles of the system % Characteristic equation % ch_eq % disp(ch_eg) % poles of the system % p1 - Marks 3

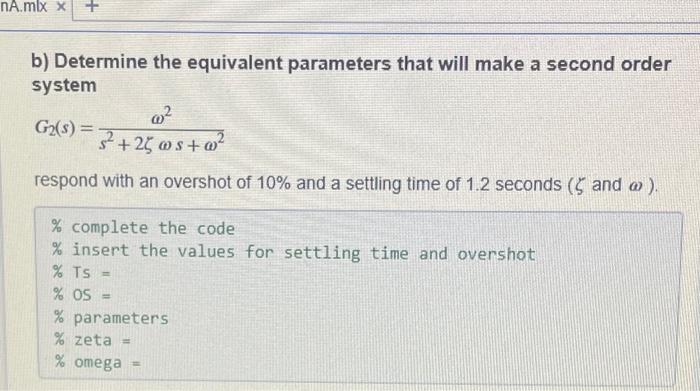

NA.mlx x + b) Determine the equivalent parameters that will make a second order system 02 G2(s) = 32 + 25 05 +02 respond with an overshot of 10% and a settling time of 1.2 seconds (5 and a ). % complete the code % insert the values for settling time and overshot % TS = % OS = % parameters % zeta = % omega
