A steel beam in the form of a cantilever of length 4 m, designed for a structural engineering application, is required t

Post by answerhappygod »

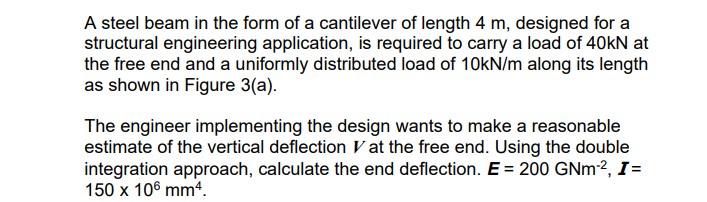

A Steel Beam In The Form Of A Cantilever Of Length 4 M Designed For A Structural Engineering Application Is Required T 1
A Steel Beam In The Form Of A Cantilever Of Length 4 M Designed For A Structural Engineering Application Is Required T 1 (34.39 KiB) Viewed 18 times
A steel beam in the form of a cantilever of length 4 m, designed for a structural engineering application, is required to carry a load of 40kN at the free end and a uniformly distributed load of 10kN/m along its length as shown in Figure 3(a). The engineer implementing the design wants to make a reasonable estimate of the vertical deflection V at the free end. Using the double integration approach, calculate the end deflection. E = 200 GNm-2, 1 = 150 x 106 mm4
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
