2. The cross-sectional dimensions of a structural steel column, which serves as the central support of a tall loading pl

[answerhappygod]

2 The Cross Sectional Dimensions Of A Structural Steel Column Which Serves As The Central Support Of A Tall Loading Pl 1 (71.85 KiB) Viewed 20 times

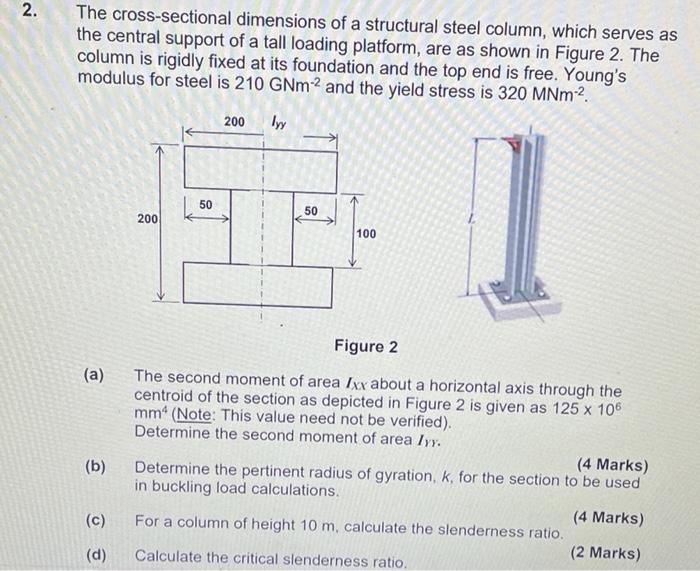

2. The cross-sectional dimensions of a structural steel column, which serves as the central support of a tall loading platform, are as shown in Figure 2. The column is rigidly fixed at its foundation and the top end is free. Young's modulus for steel is 210 GNm2 and the yield stress is 320 MNm? 200 lyy 50 50 200 100 (a) Figure 2 The second moment of area Ixx about a horizontal axis through the centroid of the section as depicted in Figure 2 is given as 125 x 106 mm (Note: This value need not be verified). Determine the second moment of area lyy. (4 Marks) Determine the pertinent radius of gyration, k, for the section to be used in buckling load calculations. (4 Marks) For a column of height 10 m, calculate the slenderness ratio. (2 Marks) Calculate the critical slenderness ratio. (b) (c) (d)
