For the four-bar mechanism shown below, determine the minimum transmission angle, use graphical method, do not measure t

[answerhappygod]

For The Four Bar Mechanism Shown Below Determine The Minimum Transmission Angle Use Graphical Method Do Not Measure T 1 (24.02 KiB) Viewed 16 times

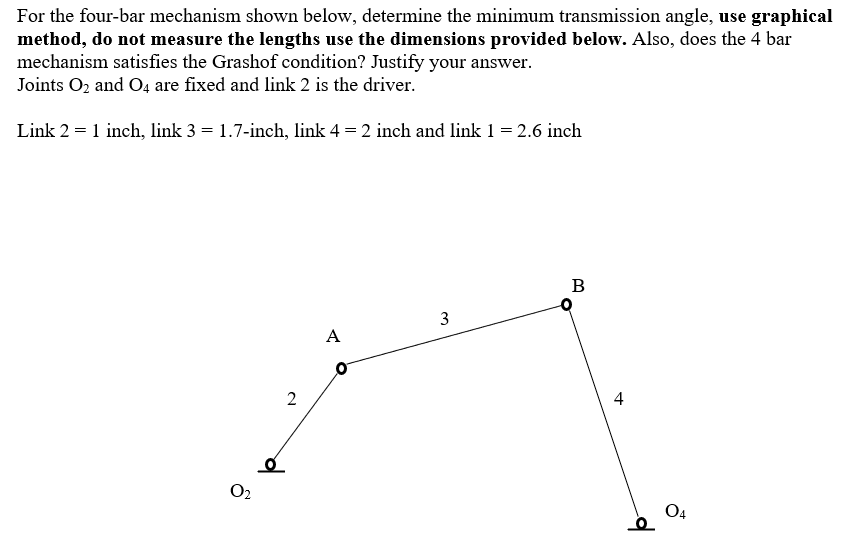

For the four-bar mechanism shown below, determine the minimum transmission angle, use graphical method, do not measure the lengths use the dimensions provided below. Also, does the 4 bar mechanism satisfies the Grashof condition? Justify your answer. Joints O2 and 04 are fixed and link 2 is the driver. Link 2 = 1 inch, link 3 = 1.7-inch, link 4 = 2 inch and link 1 = 2.6 inch B 3 A 2 4 O2 04
