Q4. For the circuit shown in Figure Q4, find: (a) The total impedance of the circuit. 8 marks (b) The total supply curre

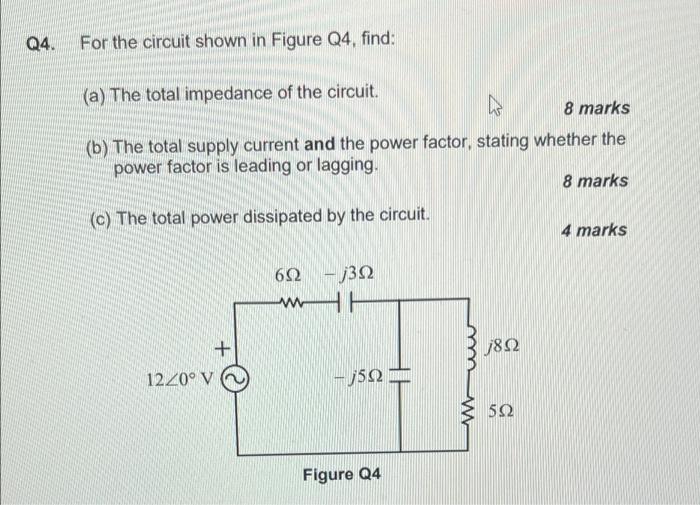

Q4. For the circuit shown in Figure Q4, find: (a) The total impedance of the circuit. 8 marks (b) The total supply current and the power factor, stating whether the power factor is leading or lagging, 8 marks (c) The total power dissipated by the circuit. 4 marks 622 - 322 НЕ w 7822 1220° V - j502 522 Figure Q4
