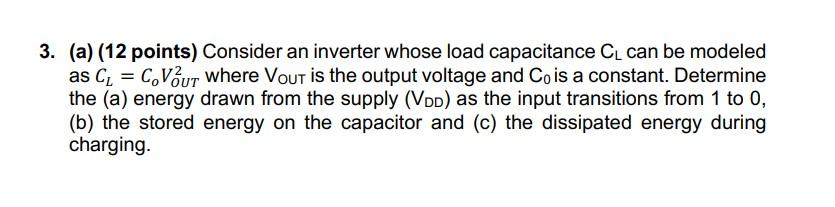

3. (a) (12 points) Consider an inverter whose load capacitance Cu can be modeled as C = C. Vout where Vout is the output voltage and Co is a constant. Determine the (a) energy drawn from the supply (VoD) as the input transitions from 1 to 0, (b) the stored energy on the capacitor and (c) the dissipated energy during charging.
3. (b) (6 points) Determine the dissipated energy by the inverter when the input transitions from 0 to 1. 3. (c) (2 points) Where does this dissipated energy go?
