(b) Figure 3.1 below is a Common-Collector Amplifier. Assume Bac=175 and that the capacitive tractance's are negligible

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(b) Figure 3.1 below is a Common-Collector Amplifier. Assume Bac=175 and that the capacitive tractance's are negligible

Post by answerhappygod »

B Figure 3 1 Below Is A Common Collector Amplifier Assume Bac 175 And That The Capacitive Tractance S Are Negligible 1
B Figure 3 1 Below Is A Common Collector Amplifier Assume Bac 175 And That The Capacitive Tractance S Are Negligible 1 (24.92 KiB) Viewed 22 times

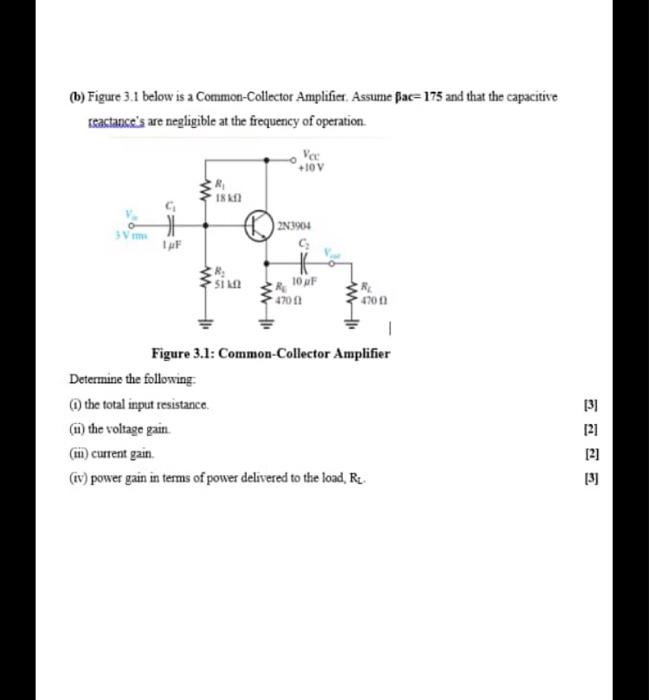

(b) Figure 3.1 below is a Common-Collector Amplifier. Assume Bac=175 and that the capacitive tractance's are negligible at the frequency of operation. Ver +10V IM 2N3904 IF Sim M RE 10 F 470 RE 1700 40 이 Figure 3.1: Common-Collector Amplifier Determine the following: the total input resistance m) the voltage gain (m) current gain. (iv) power gain in terms of power delivered to the load. R. 131 [21 [2] 13
