2. For the given figure 2 full wave bridge rectifier. Assume that the RMS Value on the primary coil of the transformer i
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. For the given figure 2 full wave bridge rectifier. Assume that the RMS Value on the primary coil of the transformer i

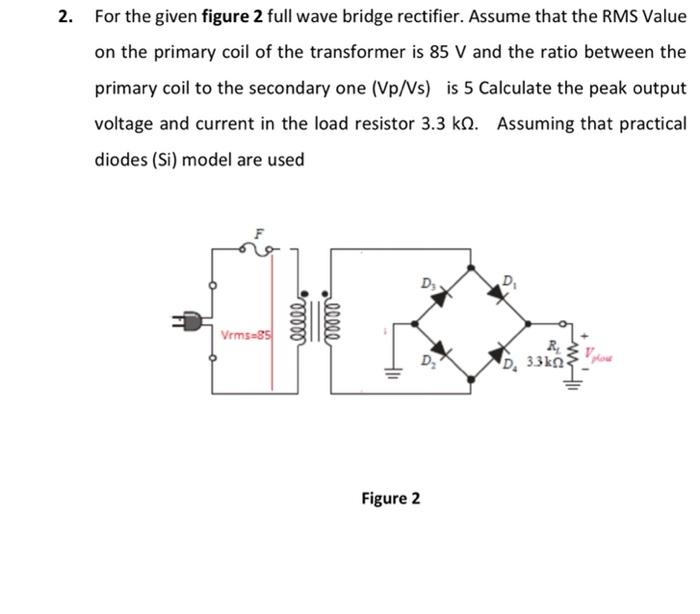

2. For the given figure 2 full wave bridge rectifier. Assume that the RMS Value on the primary coil of the transformer is 85 V and the ratio between the primary coil to the secondary one (Vp/s) is 5 Calculate the peak output voltage and current in the load resistor 3.3 k12. Assuming that practical diodes (Si) model are used D D. 00000 00000 Vrms=85 R D. H00 D. 330 Figure 2
