N 1 N Vemf + 1 y Iron core with up The transformer shown consists of a long wire coincident with the z-axis carrying a c

[answerhappygod]

N 1 N Vemf 1 Y Iron Core With Up The Transformer Shown Consists Of A Long Wire Coincident With The Z Axis Carrying A C 1 (72.15 KiB) Viewed 16 times

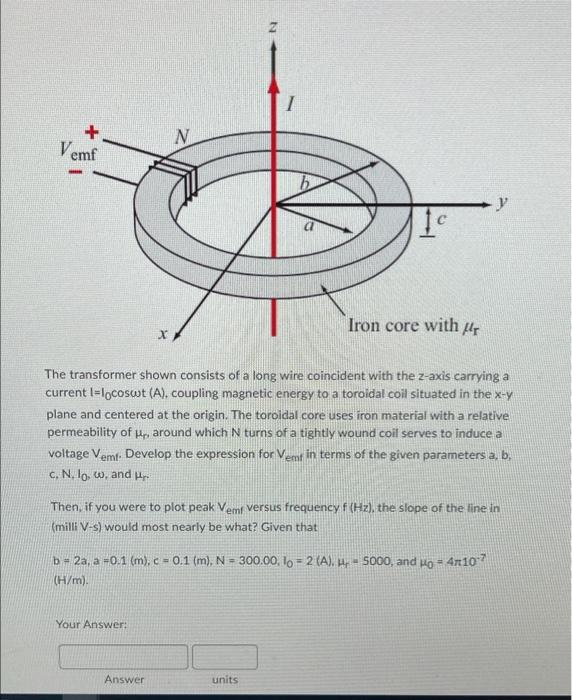

N 1 N Vemf + 1 y Iron core with up The transformer shown consists of a long wire coincident with the z-axis carrying a current l=locoswt (A), coupling magnetic energy to a toroidal coil situated in the x-y plane and centered at the origin. The toroidal core uses iron material with a relative permeability of Hp, around which N turns of a tightly wound coil serves to induce a voltage Vemt. Develop the expression for Vemt in terms of the given parameters a, b, c. N. low, and the line in Then, if you were to plot peak Vem versus frequency f (Hz), the slope (milli V-s) would most nearly be what? Given that b = 2a, a =0.1 (m), c = 0.1 (m), N = 300.00, 10 = 2 (A). -- - 5000, and 10 = 4r107 (H/m). Your Answer: Answer units
