Derive the expression for the inductance per unit length L' of a coaxial cable centered on the z-axis. Use ampere's law

[answerhappygod]

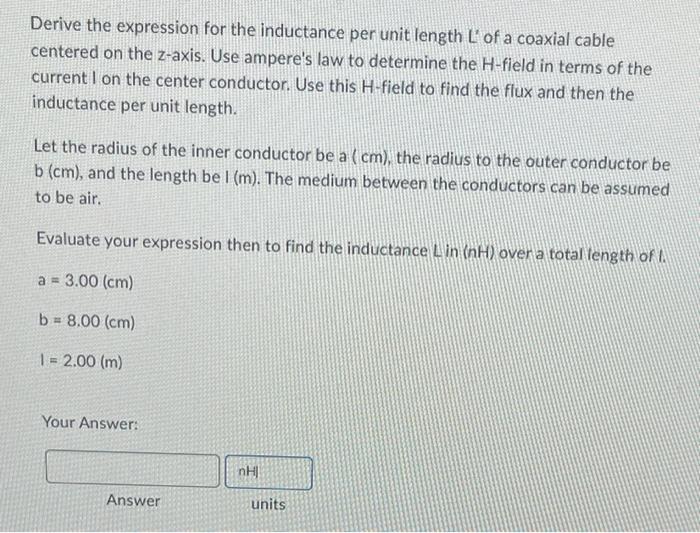

Derive The Expression For The Inductance Per Unit Length L Of A Coaxial Cable Centered On The Z Axis Use Ampere S Law 1 (80.7 KiB) Viewed 31 times

Derive the expression for the inductance per unit length L' of a coaxial cable centered on the z-axis. Use ampere's law to determine the H-field in terms of the currentl on the center conductor. Use this H-field to find the flux and then the inductance per unit length. Let the radius of the inner conductor be a (cm) the radius to the outer conductor be b(cm), and the length bel (m). The medium between the conductors can be assumed to be air. Evaluate your expression then to find the inductance Lin (nH) over a total length of A a = 3.00 (cm) b = 8.00 (cm) 1 = 2.00 (m) Your Answer: nH Answer units
