7. A generator is to run from three fuel tanks. It is required that a warning light comes ON when at least two tanks are

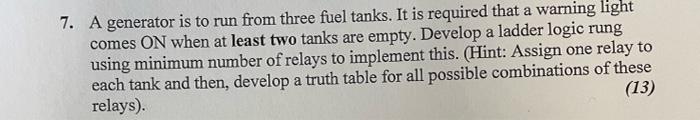

7. A generator is to run from three fuel tanks. It is required that a warning light comes ON when at least two tanks are empty. Develop a ladder logic rung using minimum number of relays to implement this. (Hint: Assign one relay to each tank and then, develop a truth table for all possible combinations of these relays). (13)
