1. For the circuit shown in Figure 1. Calculate the value of current pass- through resistor R by using Idea Diode model

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1. For the circuit shown in Figure 1. Calculate the value of current pass- through resistor R by using Idea Diode model

Post by answerhappygod »

1 For The Circuit Shown In Figure 1 Calculate The Value Of Current Pass Through Resistor R By Using Idea Diode Model 1
1 For The Circuit Shown In Figure 1 Calculate The Value Of Current Pass Through Resistor R By Using Idea Diode Model 1 (22.37 KiB) Viewed 18 times

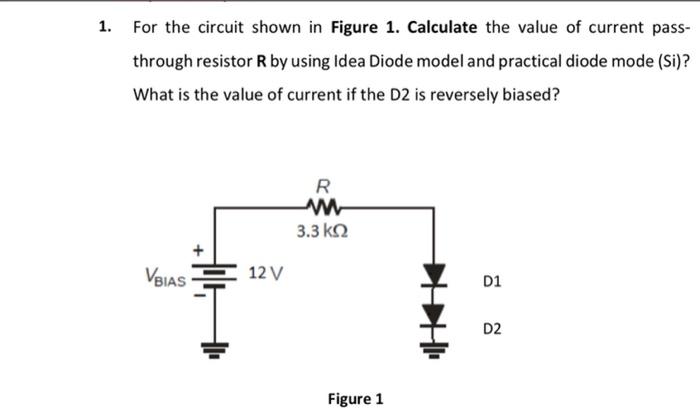

1. For the circuit shown in Figure 1. Calculate the value of current pass- through resistor R by using Idea Diode model and practical diode mode (Si)? What is the value of current if the D2 is reversely biased? R w 3.3k02 VELAS 12V D1 主主 D2 Figure 1
