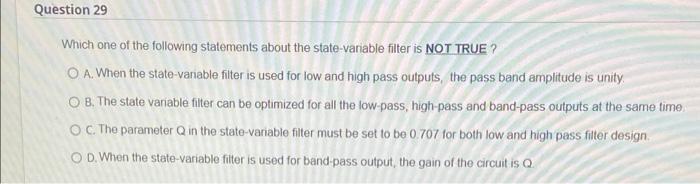

Question 29 Which one of the following statements about the state variable filter is NOT TRUE? O A. When the state-variable filter is used for low and high pass outputs, the pass band amplitude is unity O 8. The state variable filter can be optimized for all the low-pass, high-pass and band-pass outputs at the same time OCThe parameter Q in the state variable filter must be set to be 0.707 for both low and high pass filter design O D. When the state variable filter is used for band pass output, the gain of the circuit is Q
Consider a state vanable filter that is used to design a band-pass filter with o = 100, determine the band pass output voltage V. If the input voltage is V- 10 mV OAV.-1V O B.V. - 100 mv OV=10 V OD.V.-10 mV
