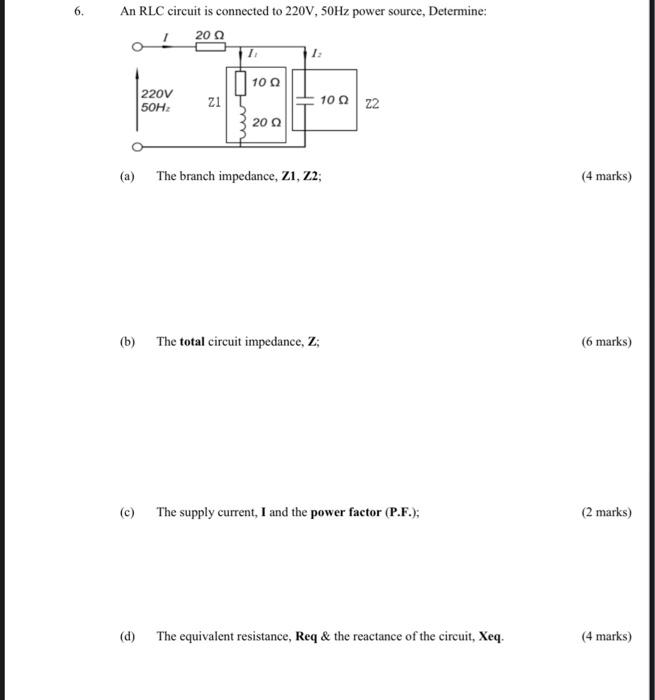

6. An RLC circuit is connected to 220V, 50Hz power source, Determine: 20 10 220V 50HZ 21 10 22 20Ω (a) The branch impedance, ZI, Z2; (4 marks) (b) The total circuit impedance, Z; (6 marks) (e) The supply current, I and the power factor (P.F.); (2 marks) (d) The equivalent resistance, Req & the reactance of the circuit, Xeq. (4 marks)
