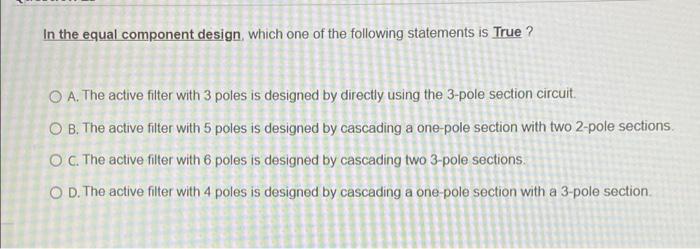

In the equal component design, which one of the following statements is True ? O A. The active filter with 3 poles is designed by directly using the 3-pole section circuit O B. The active filter with 5 poles is designed by cascading a one-pole section with two 2-pole sections. OC. The active filter with 6 poles is designed by cascading two 3-pole sections. O D. The active filter with 4 poles is designed by cascading a one pole section with a 3-pole section 3 . on

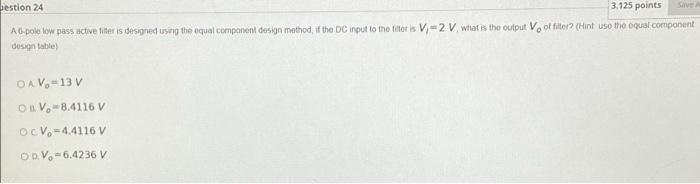

bestion 24 3.125 points Al polo low pass active titer is designed using the equal component design method, if the DC input to the file is V=2 V What is the output Voffit? (Hint use the oqual component design table) OAV.-13 V OLV.-8.4116 V OCV.-4.4116 V ODV=6.4236 V
