(C) Provide the time-domain analytical expressions for the signals x(t) that [4] correspond to the spectrum plots shown in figures Q.6c(i) and Q.6c(ii)

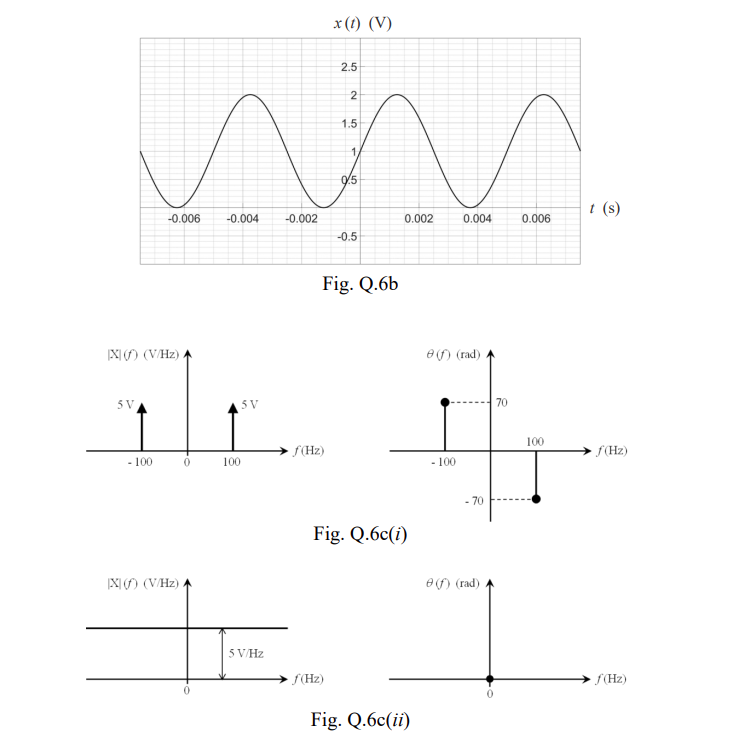

x() (V) 2.5 2 2 1.5 mm 1 0.5 1 (s) -0.006 -0.004 -0.002 0.002 0.004 0.006 -0.5 Fig. Q.6b XI (V/Hz) en (rad) 5 V SV 70 100 f(Hz) f(Hz) - 100 0 100 - 100 -70 Fig. Q.6c(i) X) (V/Hz) e) (rad) LE 5 V/Hz (Hz) f (Hz) 0 Fig. Q.6c(ii)
