2. (9 marks) As shown in Fig 2, convert the Star-connected network with impedances Z.=851225°, Zo=9512 230° and Z=7562 i

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

2. (9 marks) As shown in Fig 2, convert the Star-connected network with impedances Z.=851225°, Zo=9512 230° and Z=7562 i

Post by answerhappygod »

2 9 Marks As Shown In Fig 2 Convert The Star Connected Network With Impedances Z 851225 Zo 9512 230 And Z 7562 I 1
2 9 Marks As Shown In Fig 2 Convert The Star Connected Network With Impedances Z 851225 Zo 9512 230 And Z 7562 I 1 (18.46 KiB) Viewed 17 times

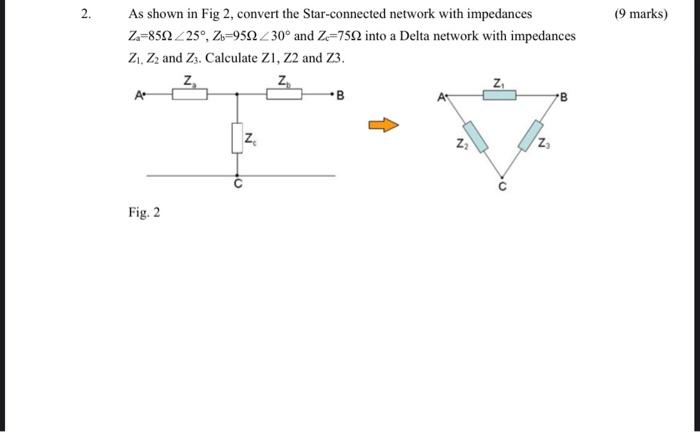

2. (9 marks) As shown in Fig 2, convert the Star-connected network with impedances Z.=851225°, Zo=9512 230° and Z=7562 into a Delta network with impedances Z. 22 and 23. Calculate Z1, Z2 and 23. z z Z A B z. z z Fig. 2
