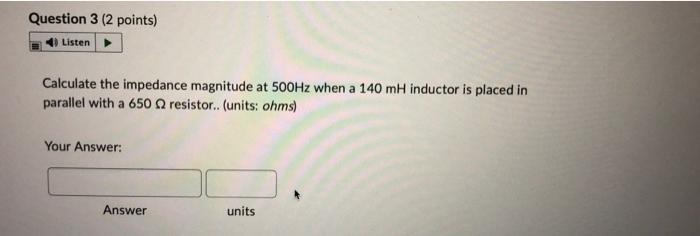

- Question 3 2 Points Listen Calculate The Impedance Magnitude At 500hz When A 140 Mh Inductor Is Placed In Parallel Wit 1 (16.55 KiB) Viewed 12 times
- Question 3 2 Points Listen Calculate The Impedance Magnitude At 500hz When A 140 Mh Inductor Is Placed In Parallel Wit 2 (25.13 KiB) Viewed 12 times
- Question 3 2 Points Listen Calculate The Impedance Magnitude At 500hz When A 140 Mh Inductor Is Placed In Parallel Wit 3 (24.05 KiB) Viewed 12 times

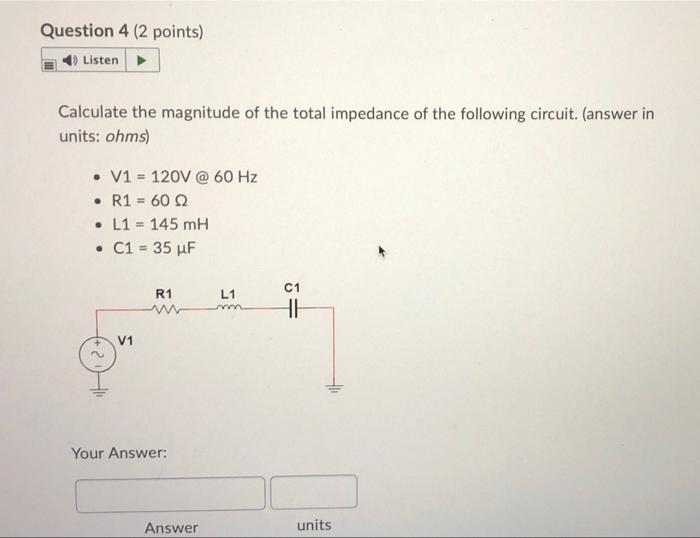

Question 4 (2 points) Listen → Calculate the magnitude of the total impedance of the following circuit. (answer in units: ohms) • V1 = 120V @ 60 Hz • R1 = 602 • L1 = 145 mH • C1 = 35 F C1 R1 L1 wy TH V1 Your Answer: Answer units

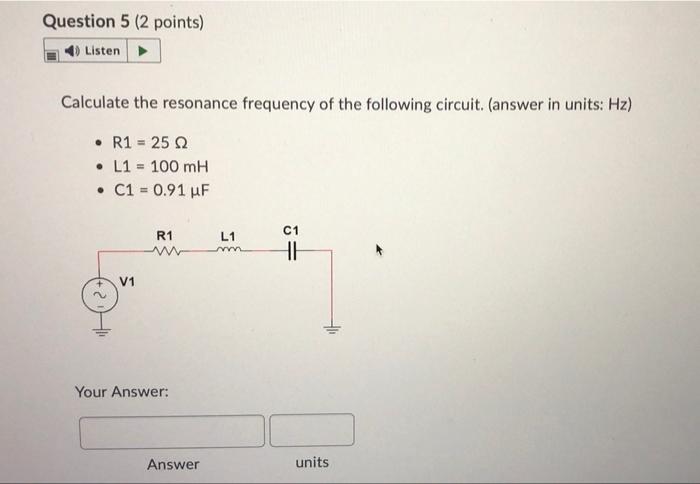

Question 5 (2 points) Listen → Calculate the resonance frequency of the following circuit. (answer in units: Hz) • R1 = 252 • L1 = 100 mH • C1 = 0.91 uF R1 C1 L1 HH V1 Your Answer: Answer units
