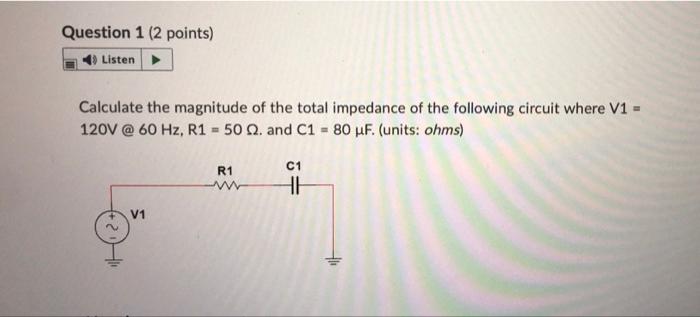

Question 1 (2 points) Listen Calculate the magnitude of the total impedance of the following circuit where V1 = 120V @ 60 Hz, R1 = 500. and C1 - 80 HF. (units: ohms) R1 C1 HH V1

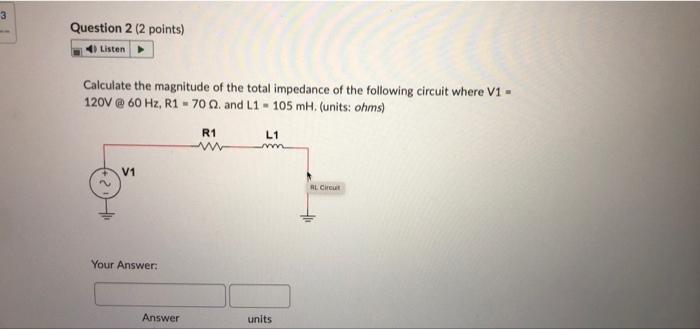

3 Question 2 (2 points) Listen Calculate the magnitude of the total impedance of the following circuit where V1 - 120V @ 60 Hz, R1 - 70 . and L1 - 105 mH. (units: ohms) R1 L1 V1 RL Circuit Your Answer: Answer units
