24. For the following circuit determine the eight output logic levels. Label the 8 outputs with variable name that is af
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
24. For the following circuit determine the eight output logic levels. Label the 8 outputs with variable name that is af

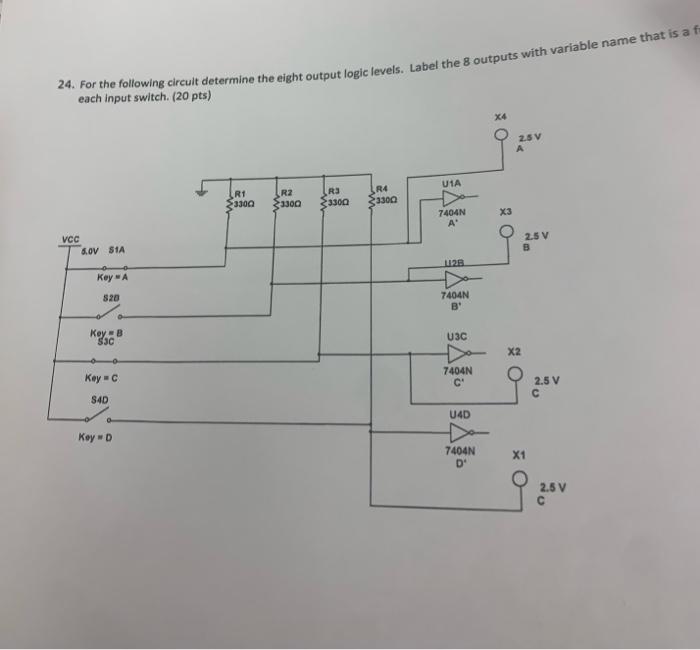

24. For the following circuit determine the eight output logic levels. Label the 8 outputs with variable name that is af each input switch. (20 pts) X4 O 25V U1A R4 R1 R2 33300 R3 3300 3300 7404N A RO VCC GOV SIA 2.5 V B 1.25 Key A 820 7404N B Key B SIC Uэс X2 0 -0 Key-C 7404N C 2.5 V C S4D U4D O Key D 7404N D X1 2.5 V
