You are using Quadrature Phase Shift Keying to communicate data across a coaxial cable. You decide that your Dibits will

Post by answerhappygod »

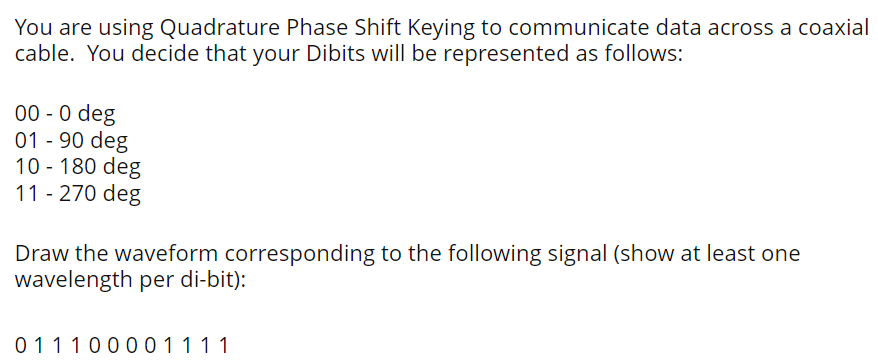

You Are Using Quadrature Phase Shift Keying To Communicate Data Across A Coaxial Cable You Decide That Your Dibits Will 1
You Are Using Quadrature Phase Shift Keying To Communicate Data Across A Coaxial Cable You Decide That Your Dibits Will 1 (31.57 KiB) Viewed 21 times
You are using Quadrature Phase Shift Keying to communicate data across a coaxial cable. You decide that your Dibits will be represented as follows: 00-0 deg 01 - 90 deg 10 - 180 deg 11 - 270 deg Draw the waveform corresponding to the following signal (show at least one wavelength per di-bit): 011100001111
