The bipolar transistor parameters are B=100,VBE(on)=0.7V ,VA=0 for T1 and T2, the T3 and T4 are identical. When RL=co, d
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The bipolar transistor parameters are B=100,VBE(on)=0.7V ,VA=0 for T1 and T2, the T3 and T4 are identical. When RL=co, d

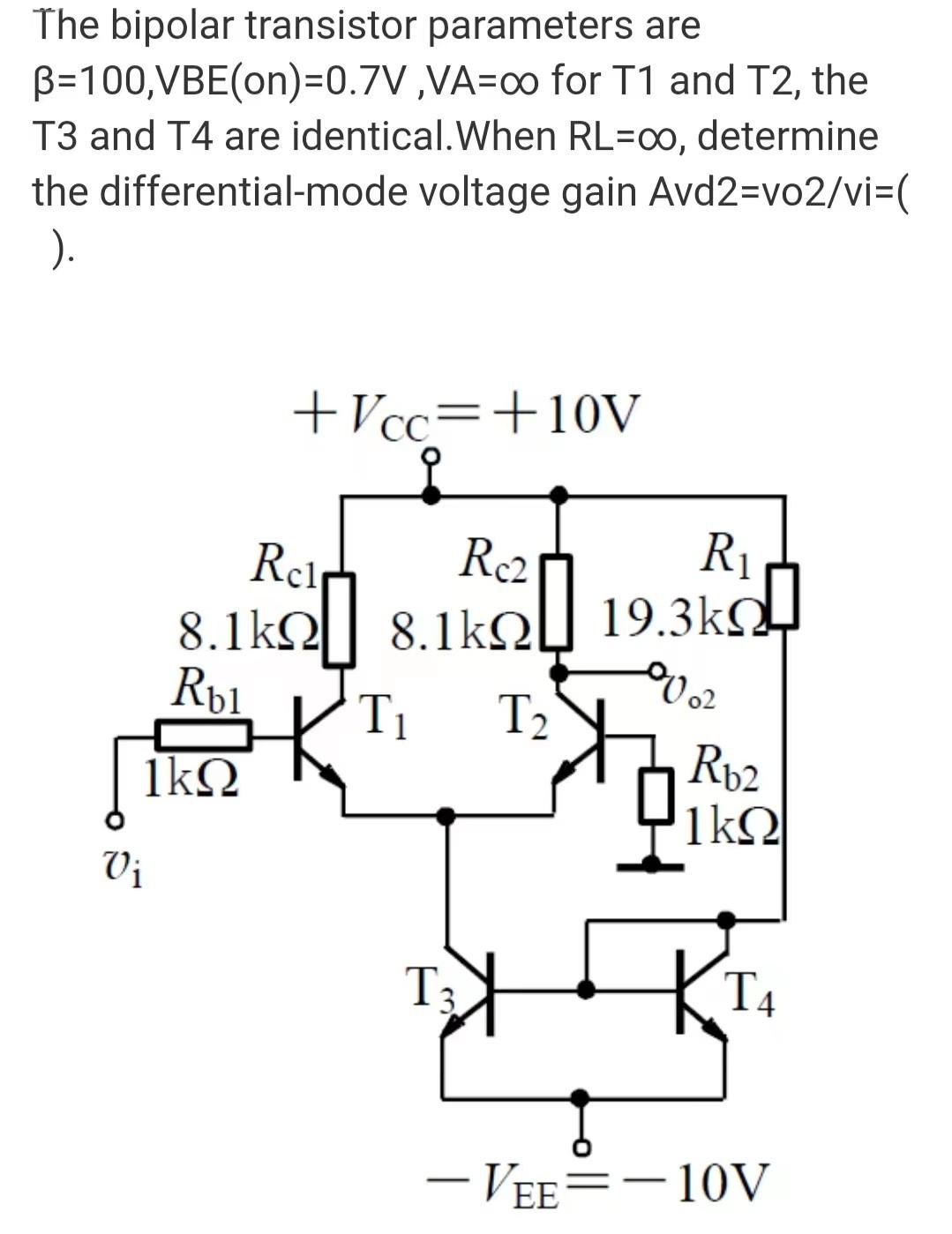

The bipolar transistor parameters are B=100,VBE(on)=0.7V ,VA=0 for T1 and T2, the T3 and T4 are identical. When RL=co, determine the differential-mode voltage gain Avd2=vo2/vi=( ). +Vcc=+10V ? Rcl R2 Ri 8.1k0 8.1k2| 19.3k | R41 90.2 T2 1kΩ 1kΩ o2 KT Rb2 Vi T3 T4 - VEE= -10V
