Problem (2): Design a lag compensator or Pl Controller to a unity feedback system with G(s) = 10 K and H (s) =1 (s+2)(8+
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am

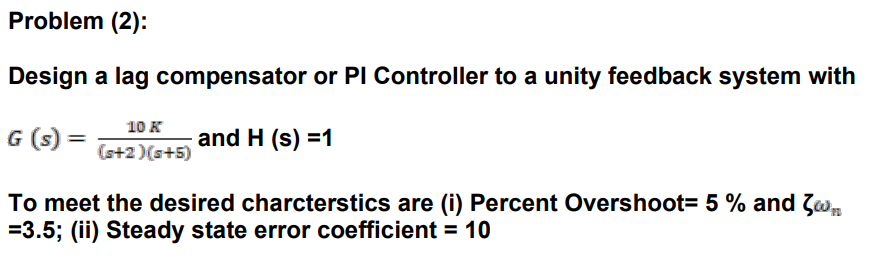

Problem (2): Design a lag compensator or Pl Controller to a unity feedback system with G(s) = 10 K and H (s) =1 (s+2)(8+
Problem (2): Design a lag compensator or Pl Controller to a unity feedback system with G(s) = 10 K and H (s) =1 (s+2)(8+5) To meet the desired charcterstics are (i) Percent Overshoot= 5 % and S. =3.5; (ii) Steady state error coefficient = 10
